The Challenger 3036025801GR hydraulic cylinder is the direct replacement for the Challenger lift it came off of. This is the genuine Challenger part — same fit and same working specification as the one already on your lift. Ordering the Challenger hydraulic cylinder from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: 3036025801GR
• Brand: Challenger
• Type: Genuine OEM hydraulic cylinder

Seals and hoses age on two clocks at once: cycles and years. A cylinder seal wears from the miles the rod travels; a hose gets brittle just sitting in shop heat and cold. Run dirty fluid and you speed both up, because grit scores the barrel and the rod and shreds seals from the inside. Most lifts that pump every day start weeping a seal somewhere in the eight-to-fifteen year range.

The hydraulic side of a lift is a closed loop: the power unit's motor drives a pump that pushes fluid from the reservoir, through a hose and fittings, into a cylinder that does the lifting, while a lowering valve meters it back to tank on the way down. Every part in that loop either moves fluid, holds pressure, or seals it in. When one link weeps or won't hold, the whole lift feels it.

Related parts for this lift

The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.

• Challenger 3036025801 Cylinder Slave Model Dx77C

Replacing your hydraulic cylinder

Rebuilding a cylinder with a seal kit is bench work: tear it down, lay the parts out in order, confirm the bore and rod aren't scored, then reassemble with the new seals lubricated and bench-test for leaks before it goes back in. The order of the seals and the condition of the barrel make or break the job. Walk through the complete guide before you crack the end cap. Full step-by-step: how to replace a 2-post lift cylinder.

Find the right part for your lift

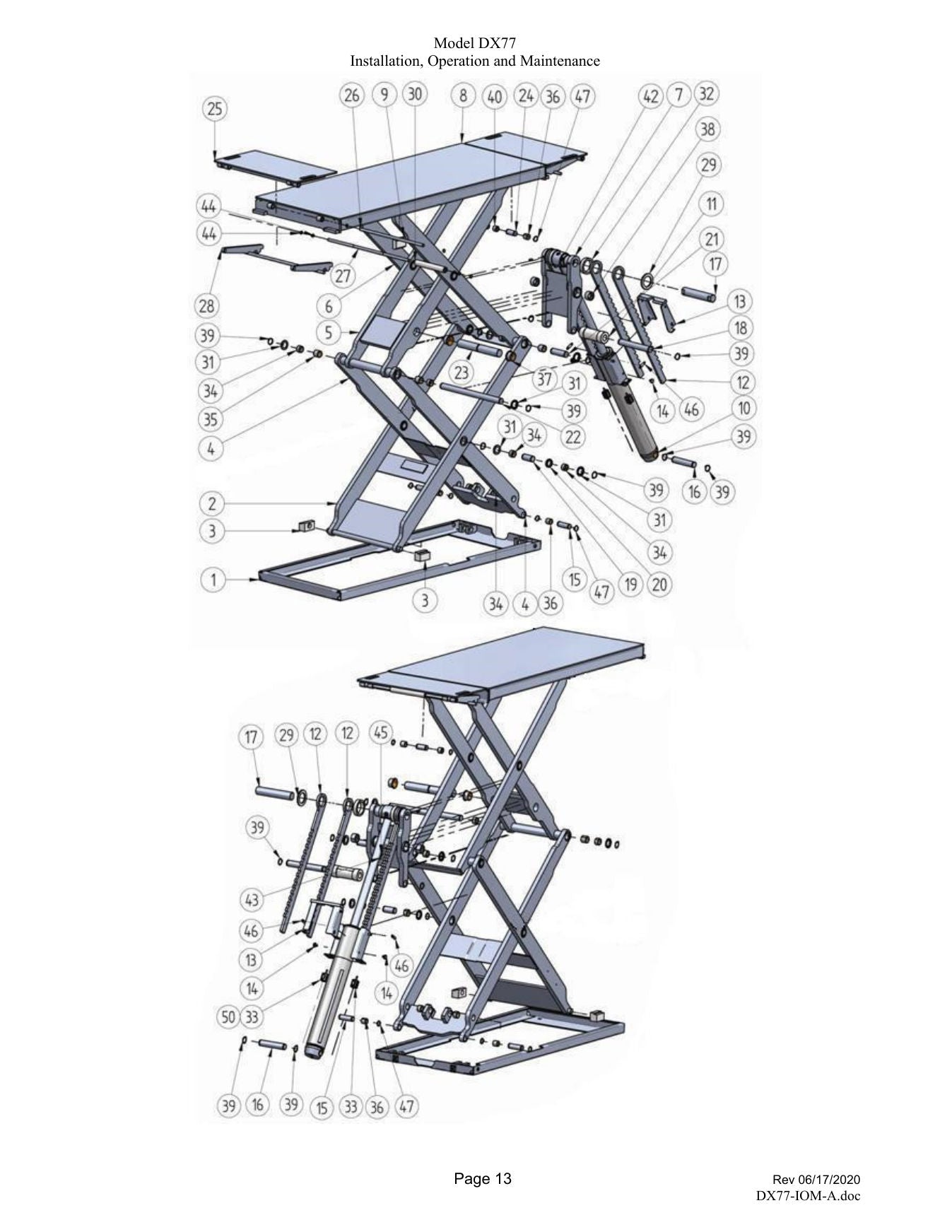

Want to be sure before you buy? Pull the model and serial off your lift's plate and open our Challenger parts lookup to open the exploded parts breakdown for your model — find your part on the drawing and you know it fits. New to finding your model number? our guide to finding your model number covers it, or send a photo of the plate and we will read it for you.

Signs of a hydraulic problem

Check for drift-down as the clearest internal-leak test: raise the lift, shut it off, and time how long it holds. A properly sealed system holds height for days. Noticeable sag in a few hours points to the lowering valve not seating, a failed check valve, or a piston seal passing fluid — cracking the cylinder and watching whether it sags with the valve closed isolates which.

Parts commonly replaced at the same time

While the system is open, take care of the companions — the seal kit, the o-rings, the feed hose, and the oil you will need to refill and bleed. It is cheaper and cleaner than reopening the system for the piece you skipped. We keep the right specs for your lift and can kit it for you.

Hydraulic fluid

Most 2-post and 4-post lifts run hydraulic oil equivalent to ISO-32; some older units were filled with Dexron ATF. Check what your lift currently uses and do not mix the two — and defer to your lift's installation manual for the exact fill capacity, since it varies by model.

Safety notes

Treat the hydraulic system as pressurized until you have relieved it. Bleed in the correct order, keep the reservoir topped so the pump never sucks air, and confirm there is zero drift at full height before returning the lift to service. A cylinder or hose that weeps today is a failure waiting for the worst moment.

Before you order

Hydraulic components are specific to the lift's pressure and plumbing, so order by model and serial, not by eye. For a leaking cylinder, decide between a seal kit and a full replacement first — we can help — and plan on topping off and bleeding the system when the new part goes in.

Confirm this is the right part before you order

Lift manufacturers revise parts mid-production without changing the model name, so the same lift bought two years apart can take two different revisions of the same component. Before you order, find the model plate on the lift — on most 2-post lifts it rides on one of the columns at eye level, on 4-post lifts it is usually on a column or the power-unit side runway — and note the full model number and serial. The serial dates the lift to a production run, and that is what decides which revision fits.

If the plate is painted over or missing, take a photo of the part you are replacing next to a tape measure and send it to us. Between the dimensions, the mounting pattern, and what lift it came off of, we can almost always identify the exact part before you spend money on the wrong one.

Why buy your Challenger hydraulic cylinder from Auto Lift Services

We install, inspect, and repair Challenger lifts every week — the 3036025801GR is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
