The Challenger A2127-PU hydraulic hose is the direct replacement for the Challenger lift it came off of. This is the genuine Challenger part — same fit and same working specification as the one already on your lift. Ordering the Challenger hydraulic hose from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: A2127-PU
• Brand: Challenger
• Type: Genuine OEM hydraulic hose
• Fits: CL10, CL10A, CL10DPC, CL10V3

Dirty or wrong fluid quietly wrecks hydraulic parts. Milky oil means water got in and the pump is cavitating; dark, gritty oil means the system is grinding itself and packing the filter with metal. Mixing ISO-32 and ATF, or topping off with whatever's on the shelf, changes the viscosity the pump was built for. Half the "bad cylinder" calls in a shop start as fluid that should have been changed years ago.

The cylinder is where hydraulic pressure becomes lift. Fluid pushed behind the piston drives the rod out, the rod raises the carriage or pulls the cables, and a check valve holds it up there until the lowering valve lets it back down. It's a simple, rugged part — until the rod seal wears or the barrel scores, at which point it can't hold pressure and the lift won't stay up.

What lifts this hydraulic hose fits

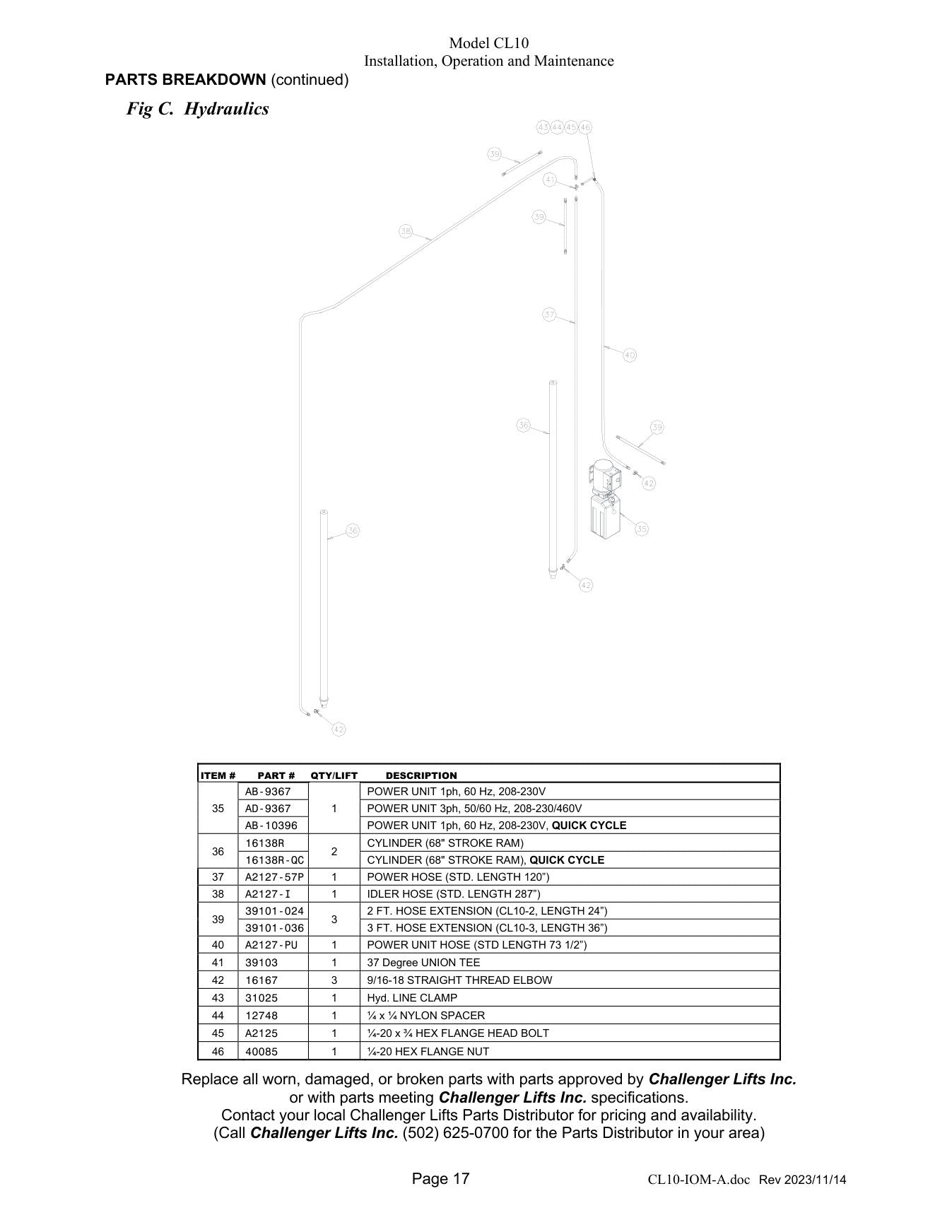

This hydraulic hose fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• CL10 — see the exploded parts breakdown for this lift
• CL10A — see the exploded parts breakdown for this lift
• CL10DPC — see the exploded parts breakdown for this lift
• CL10V3 — see the exploded parts breakdown for this lift

Related parts for this lift

The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.

• Challenger A2127-57P Hyd. Hose Assembly Power - 126")
• Challenger A2127-I Hyd. Hose Assembly Idler - 287")
• Challenger A2127-P Hyd. Hose Assembly Power - 120")

Replacing your hydraulic hose

Most hydraulic repairs share the same discipline: relieve pressure, keep the system clean, replace the part, then bleed the air and verify the lift holds under load. Contaminated fluid or trapped air will undo an otherwise good job. Because these parts keep a vehicle safely in the air, the full procedure is worth following start to finish. Full step-by-step: how to replace a car lift hydraulic hose.

Find the right part for your lift

The surest way to get the right part is to work from your lift's own breakdown. open our Challenger parts lookup, choose your model, and every part is mapped on the drawing with its number and price. If you cannot find the model plate, our guide to finding your model number explains where each lift type hides it, and our phone line is open if you want a hand.

Signs of a hydraulic problem

Wipe the cylinder rod and body clean, cycle the lift, and look again. A film of oil creeping down from the rod seal means the seal is weeping; a wet fitting means an o-ring or washer is done. Then raise the lift, mark the height, and leave it overnight — if it has drifted down by morning, the cylinder, check valve, or lowering valve is bleeding internally.

Parts commonly replaced at the same time

A hydraulic repair is the right moment to handle the parts that fail alongside this one — seals, o-rings, the hose that feeds it, and fresh oil for the refill. Opening the system twice for parts you could have done together is wasted labor. We will build the seal-and-hose kit for your lift so the repair is complete in one go.

Hydraulic fluid

Most 2-post and 4-post lifts run hydraulic oil equivalent to ISO-32; some older units were filled with Dexron ATF. Check what your lift currently uses and do not mix the two — and defer to your lift's installation manual for the exact fill capacity, since it varies by model.

Safety notes

Hydraulic parts hold a vehicle in the air on pressure and a column of oil — respect both. Relieve system pressure before you crack any fitting, cap every open port so grit stays out, and bleed the system fully before the lift carries a load. Air in the lines is what causes a lift to drift or drop unexpectedly.

Before you order

Have the data plate in front of you when you order — model, serial, and voltage if it is a power unit. Match hose length and fitting type against the old part, and remember the job includes fresh oil and a full bleed. Not sure whether you need the part or just seals? Call and we will sort it.

Confirm this is the right part before you order

Lift manufacturers revise parts mid-production without changing the model name, so the same lift bought two years apart can take two different revisions of the same component. Before you order, find the model plate on the lift — on most 2-post lifts it rides on one of the columns at eye level, on 4-post lifts it is usually on a column or the power-unit side runway — and note the full model number and serial. The serial dates the lift to a production run, and that is what decides which revision fits.

If the plate is painted over or missing, take a photo of the part you are replacing next to a tape measure and send it to us. Between the dimensions, the mounting pattern, and what lift it came off of, we can almost always identify the exact part before you spend money on the wrong one.
