The Challenger B31261 safety latch is the direct replacement for the Challenger lift it came off of. This is the genuine Challenger part — same fit and same working specification as the one already on your lift. Ordering the Challenger safety latch from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: B31261
• Brand: Challenger
• Type: Genuine OEM safety latch
• Fits: CLFP9

Lock ladders and pawls are matched geometry — the tooth pitch, the nose angle, and the mounting have to suit the specific lift. A ladder that almost fits will let the pawl sit shallow on the tooth, which is worse than obvious because it looks engaged and isn't. Match restraint parts to the actual lift model and column, not a close-enough substitute, because the whole point of the part is that it holds under full load.

Locks don't work in isolation — they depend on the release mechanism and the leveling of the lift. The lock-release cable or air cylinder pulls all pawls at once so the lift comes down even; if the lift isn't level, one pawl loads before the others and wears first. So when locks click unevenly, the cause can be the ladders, the pawls, the release, or stretched cables. Diagnose the set, not just the noisy corner.

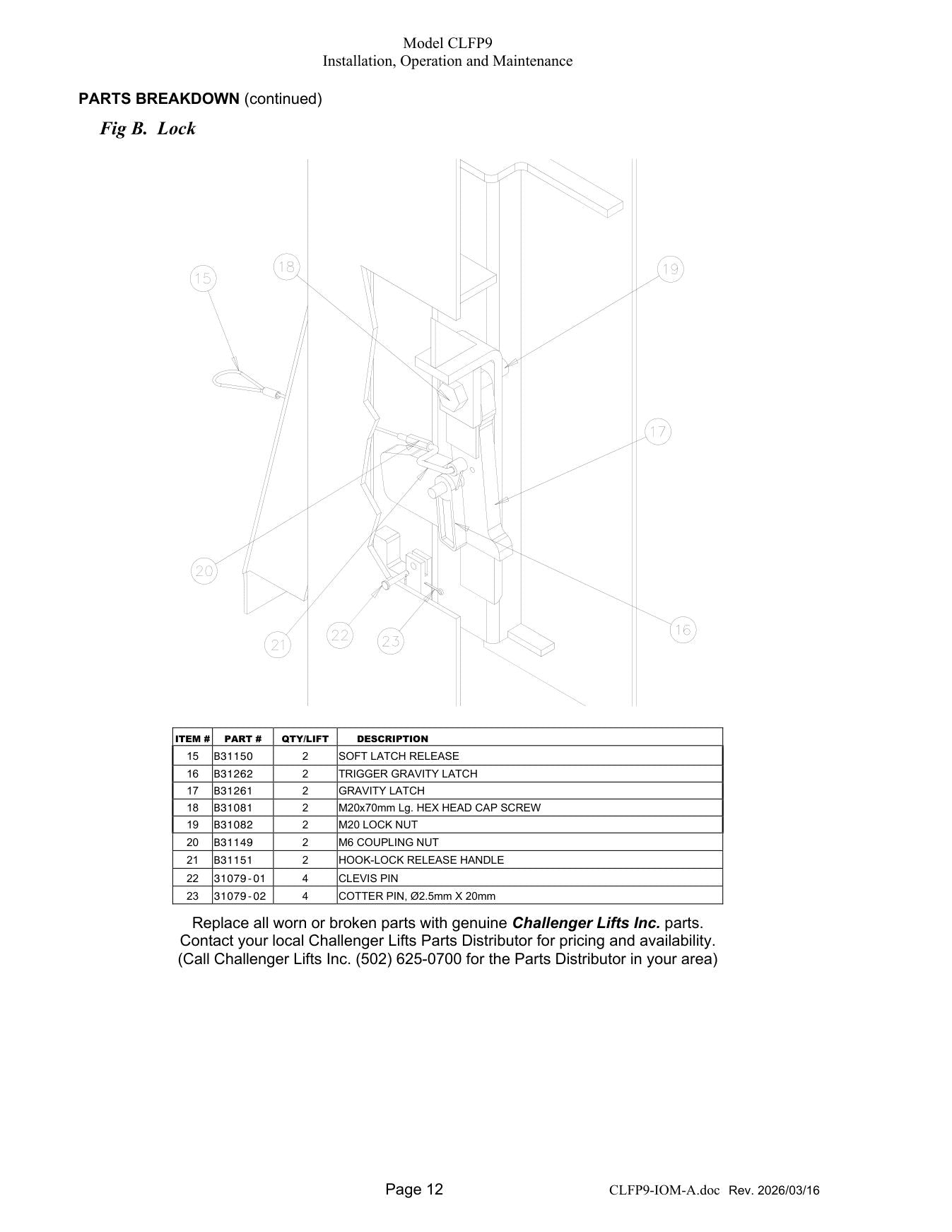

What lifts this safety latch fits

This safety latch fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• CLFP9 — see the exploded parts breakdown for this lift

Replacing your safety latch

Replacing a lock ladder or pawl is straightforward mechanical work, but it's the one repair where getting it exactly right isn't optional — the new parts have to let the pawl seat fully into a square tooth and spring home crisply every time. Set it up, then cycle the lift and confirm every lock engages and releases cleanly. Since the locks are what hold a vehicle overhead, the full procedure is worth following start to finish. Full step-by-step: how to replace a lift lock ladder.

Find the right part for your lift

Not certain this is the exact part your lift needs? Start with your lift's model and serial off the data plate, then open our Challenger parts lookup to see the visual parts breakdown for your model — the exploded drawing with every part numbered and priced. If your plate is missing or unreadable, our guide to finding your model number walks through where to find it, or send us a photo and we will identify the lift for you.

Signs the locking system needs attention

Check that the ladder is tight on its mounts. A ladder that has loosened, shifted, or cracked at a bolt hole moves under load, which changes where the pawl lands and can let it slip past a tooth. Grab it and try to move it; there should be no play. Any give at the mounting means the ladder needs re-securing or replacing before the locks can be trusted.

Parts commonly replaced at the same time

While you are in the locking system, handle the companions: the pawl, its spring, the latch, and the release cable that operates them. Replacing one worn piece and leaving the rest just means uneven locking and another visit. Give us your lift's model and we will build the matched set for both sides.

Safety notes

A lift is only as safe as its locks, and locks are mechanical parts that wear — rounded teeth, tired springs, cables out of adjustment. Replace them at the first sign of uneven or hesitant engagement, verify both sides catch and release in sync, and never park a load on locks you have not tested.

Before you order

Do the lock job once and completely: confirm model and serial, order latch, pawl, spring, and release cable together, and do both columns if either is worn. Even, synchronized locking depends on matched hardware. Call and we will confirm the right kit for your lift before it ships.

Ordering the right revision

Before this goes in the cart, grab two things off your lift: the model number and the serial number, both on the manufacturer's plate. The serial matters more than most people expect — lift makers revise components between production runs without renaming the lift, and the run your serial falls in determines which revision of this part is correct.

If you are working from a failed part rather than a plate, measure what you have and photograph how it mounts. Send that to us along with the lift brand, and we will check it against the same parts breakdowns our own techs use in the field before you commit to the order.

Why buy your Challenger safety latch from Auto Lift Services

We install, inspect, and repair Challenger lifts every week — the B31261 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
