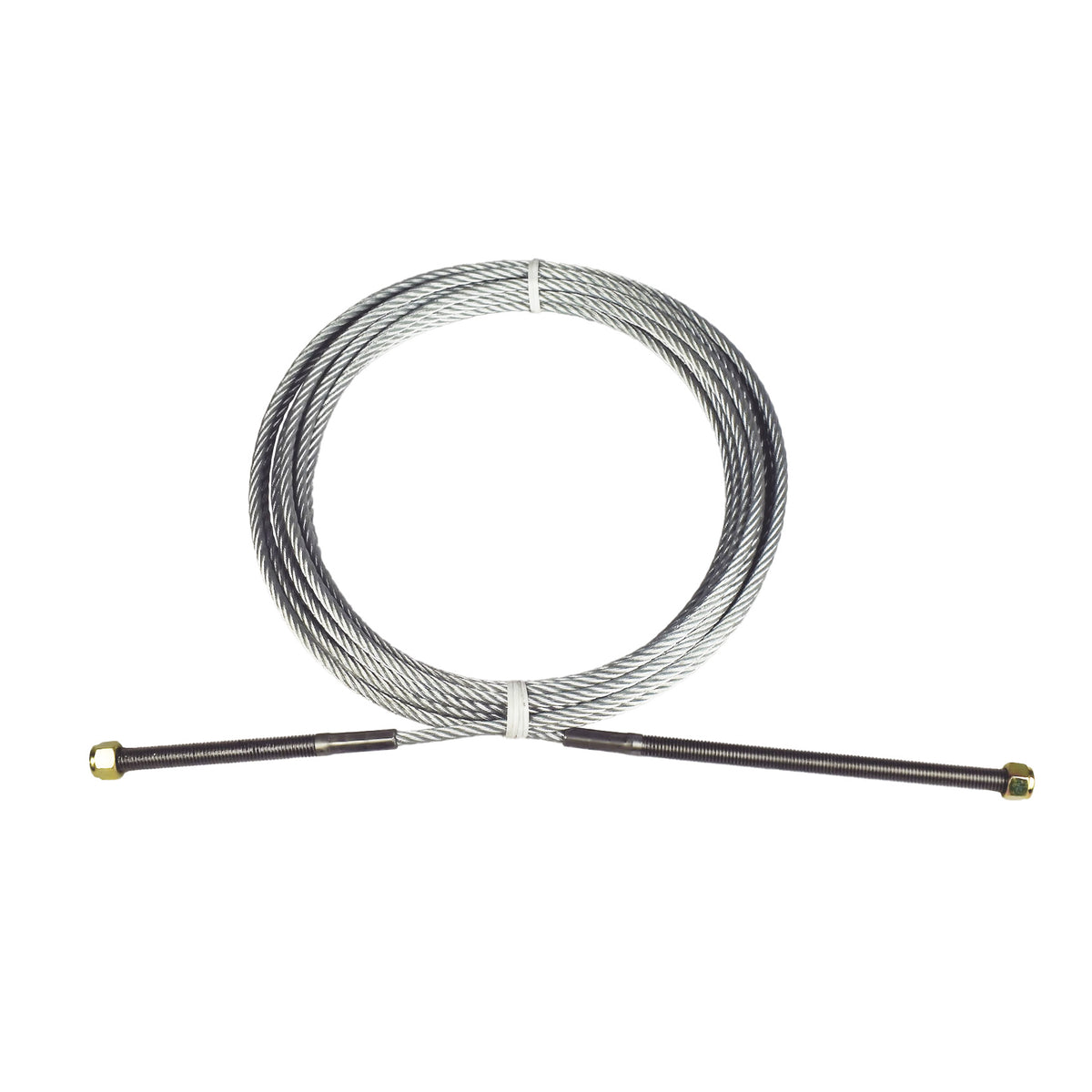

This aftermarket wheeltronic 1-1473 cable, eq. 81776s, 1776s (361") is a factory-spec replacement component for commercial automotive lift platforms. Cataloged as Auto Lift Services Part #ALS-9742, it is manufactured to precise tolerances for reliable fit and function.
Technical Highlights
- Factory-spec dimensions for commercial lift compatibility
- No-modification-needed installation
- Tested to withstand continuous commercial use
- Competitive pricing vs. OEM list
Part Numbers
- Auto Lift Services Part #: ALS-9742
Compatible Models
- Fits Models: Wheeltronic 2-Post Lift Model 1776S, 1776SVGL, 1812A, 1812A14, 81776S / A.T.D. 2-Post Lift Model WH-10ASY
- Overall Length: 30’ 1” (361 in / 9169.40 mm) Long
- Cable Diameter: 9/32” (7.144 mm)
- Cable Material: Galvanized Steel
- Cable Ends: (2) Threaded Studs 1/2”-13
- Fasteners Included
- Both Cable End Studs are threaded, with one end measuring 9.73” long including threads and the other end measuring 6.20” long including threads.
- For the American Tire Distributors WH-10ASY Lift Models, use this Cable Assembly instead of the BH-7120-00 Cable Assembly.
- For the Snap-On Lift EELR334A, EELR337A & EELR350A Lift Models, use this Cable Assembly instead of the BH-7589-50 Cable Assembly.
- (1) Wire Rope Cable Assembly
- Fasteners Included
- Wire Rope Balancing Cable
- Wire Rope Equalizing Cable
- Wire Rope Equalizer Cable
- Wire Rope Stabilizer Cable
