The Atlas 209035 arm restraint gear is the direct replacement for the Atlas lift it came off of. Cross-referenced as ALS-7168-0091, it is the genuine Atlas part — same part number, same fit, and same working specification as the one already on your lift. Ordering the Atlas arm restraint gear from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.
Specifications
- Part number: ALS-7168-0091
- Brand: Atlas
- Type: Genuine OEM arm restraint gear
Restraint gear takes abuse it never shows on the surface. It absorbs the shock every time the lift settles onto the locks, and it's exposed to the same grit, water, and dropped tools as everything else at floor level. Bent teeth, a cracked weld, or a pivot rusted stiff all mean the gear can't do its job. Because it looks like solid steel, people assume it can't wear — and then it does.
Lock ladders and pawls are matched geometry — the tooth pitch, the nose angle, and the mounting have to suit the specific lift. A ladder that almost fits will let the pawl sit shallow on the tooth, which is worse than obvious because it looks engaged and isn't. Match restraint parts to the actual lift model and column, not a close-enough substitute, because the whole point of the part is that it holds under full load.
Related parts for this lift
The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.
- Arm Pin - Atlas - QL40-800-00
- Arm Restraint Ball Knob - Atlas - QL40-000-15
- Arm Restraint Kit for 9KOH, 9KBP - Atlas - ATEXHP-QL4L-320-00 QL4L-320-00
- Arm Restraint Kit for 9KOHX, PRO-9D, 9KBPX - Atlas - ATEXHP-QL4L-320-00X QL4L-320-00-X
- Arm Pin - Atlas - 209030A 217168
- Arm Lock Rod - Atlas - 209024
Replacing your arm restraint gear
Swapping restraint gear or a safety latch is about restoring the positive stop that catches the load if something upstream lets go. Install the part, then trip it by hand and under the lift's own weight to confirm it deploys fully and clears on release. This is safety-critical hardware, so the step-by-step procedure is worth following start to finish. Full step-by-step: how to replace lift arm restraint gears.
Find the right part for your lift
Want to be sure before you buy? Pull the model and serial off your lift's plate and open our parts lookup to open the exploded parts breakdown for your model — find your part on the drawing and you know it fits. New to finding your model number? our guide to finding your model number covers it, or send a photo of the plate and we will read it for you.
Signs the locking system needs attention
The condemn list for locks: rounded, chipped, or peened ladder teeth; a worn or rounded pawl nose; a pawl that sticks, lags, or won't spring home; a weak or broken return spring; a loose ladder; a release that doesn't pull every pawl together. Any one of these takes the lift out of service — the locks are the last line, and there's no partial credit on the part that catches a falling car.
Parts commonly replaced at the same time
The parts around a lock failure share its wear: a rounded latch usually rides with a tired spring and a stretched release cable. Do them together on both columns so the lift locks in step. Tell us your model and serial and we will pull the complete lock hardware set.
Safety notes
Locks are the redundancy that makes a lift safe to stand under, so treat any lock problem as urgent. If teeth are rounded, a pawl sticks, or the release cable is frayed, fix it before the next vehicle. Confirm synchronized engagement and clean release on both sides, and never bypass a balky lock to buy time.
Before you order
Order lock parts by model and serial, not by guess — the hardware changed across production runs. Since both sides should lock in step, plan to replace in pairs, and bundle the release cable if it is worn. We will match the correct latch, pawl, and spring set for your lift.
Check your lift's serial before ordering
The most common reason a lift part comes back is not a defect — it is a revision mismatch. Manufacturers change sub-parts between production runs while keeping the same lift model name, so "it fits my lift model" is not always enough. The model plate carries the serial number that pins your lift to a specific run, and that is the number that settles which version of this part belongs on your lift.
Can't find the plate? Measure the old part — overall length, bolt-hole spacing, thread size on anything threaded — and photograph it from a couple of angles. Send that with your lift's brand and rough age and we will match it against the parts breakdowns we service from every week.
Why buy your Atlas arm restraint gear from Auto Lift Services
We install, inspect, and repair Atlas lifts every week — the ALS-7168-0091 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
About this 209035 arm restraint
The 209035 arm restraint is a direct-fit replacement engineered to restore original manufacturer performance on the lift model it services. Every piece we ship carries the exact dimensional and material specifications the OEM published for that application. Fitment on this component is critical: it interfaces with adjacent hardware in ways that any deviation from spec can drive premature wear on nearby parts or trigger the lift's mechanical safety systems into an unexpected condition. Shops that source this from us instead of a generic aftermarket substitute consistently report zero fitment issues on first-time installation.
Technical specification & installation notes
Cycle life on this piece depends heavily on operating conditions. In a typical commercial repair shop running 6-10 lifts per day, the 209035 arm restraint should deliver five to eight years of service before showing measurable wear against the OEM inspection specification. In a high-volume tire or alignment shop running 20+ lifts per day per bay, expect service every three to five years. It is designed to be a serviceable component; when it does wear it wears within safe operating margins that trigger visible symptoms — drift, uneven wear, minor leakage — well before failure becomes a safety issue.
Shipping & ordering
Freight covers the continental United States on all standard orders. We ship UPS or FedEx ground for parts under 30 lb; heavier assemblies quote at published carrier rates. International orders on the 209035 arm restraint require a freight quote — email dimensions, weight, and destination country to [email protected] and we return a rate within one business day. Alaska, Hawaii, and US territories quote at published rates and typically take five to ten business days depending on carrier and destination.
Warranty coverage
Return policy on the 209035 arm restraint follows our store-wide standard: all parts sales are final; exchanges only if the piece arrives defective. In the case of a defective delivery, ship the failed piece back to us at your cost, we verify the defect on receipt, and ship a replacement at ours. Wrong-item deliveries where we made the shipping error follow a different path — we reimburse the return shipping cost and cover freight on the correct part. Contact [email protected] with the order number to start either process.
Cross-reference & fitment
Fitment on the 209035 arm restraint is verified against the lift serial number when the order comes in. Even inside one manufacturer's catalog, a lift model built in one production year can carry subtle revisions from the same model built two or three years later. Sending us the lift serial number when you place the order — either in the order notes or in a follow-up email — lets us verify the piece against that specific serial's parts list. That five-minute step catches revision mismatches before shipping and prevents the delay of an incorrect delivery.
Questions about the 209035 arm restraint? Call our parts desk at 800-674-9302 or email [email protected]. We ship nationwide from our Iowa warehouse and answer fitment questions within one business day.

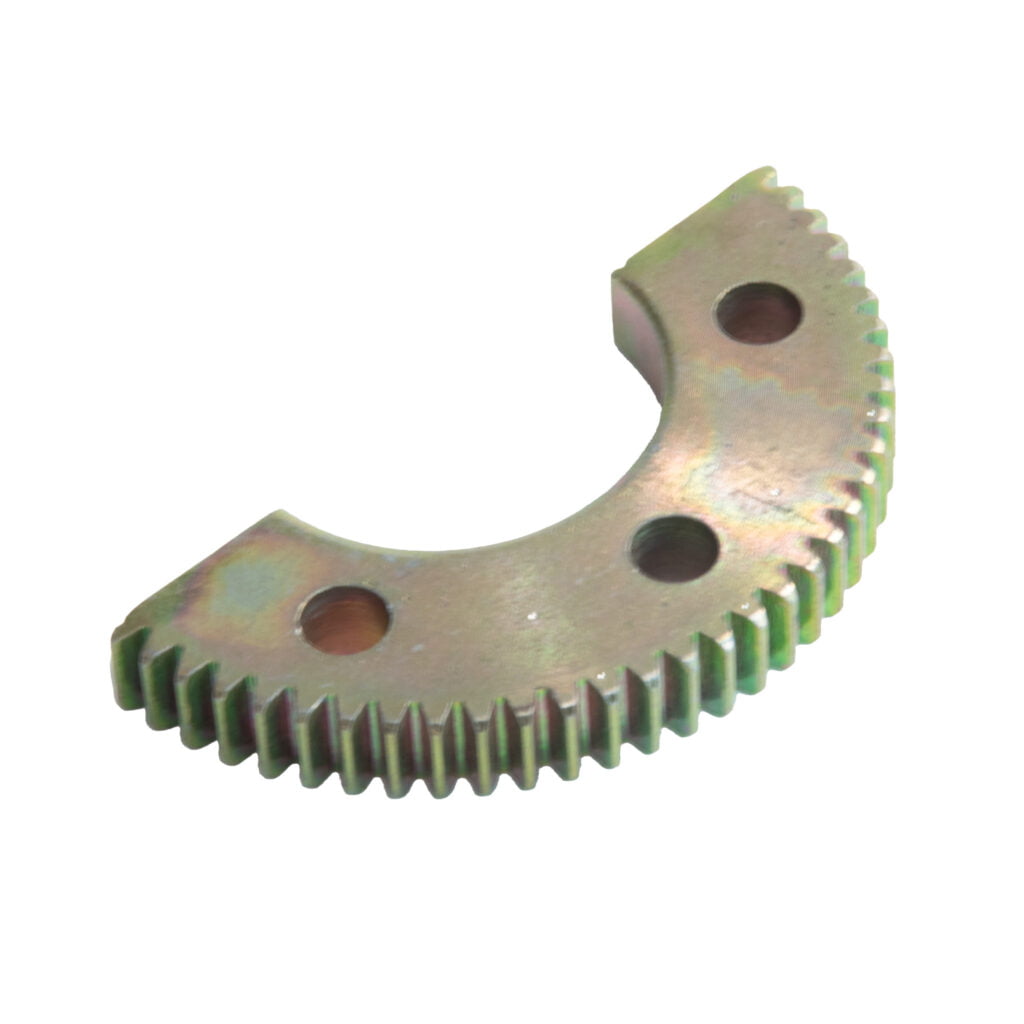

Arm Restraint Half Moon Main Gear - Atlas - 209035
