The BendPak 5575112 sheave is the direct replacement for the BendPak lift it came off of. This is the genuine BendPak part — same fit and same working specification as the one already on your lift. Ordering the BendPak sheave from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: 5575112
• Brand: BendPak
• Type: Genuine OEM sheave
• Fits: BENDPAK-5260130-PCL-18B, BENDPAK-5260185-PL-7000XR, BENDPAK-5260330-PCL-18B, BENDPAK-5260331-PCL-18B, BENDPAK-5260333-PCL-18B, GP-7-150, GP-7LC, GP-7LCS, XPR-10AS, XPR-10AS-168, XPR-10AXLS, XPR-10AXLS-181

Sheaves are the grooved pulleys the cable turns on — usually two per column on a two-post, more on a four-post with its runway and crossbeam pulleys. Each one rides a pin on a bushing and has to spin true so the cable tracks in the groove. When the groove wears wide or the bushing pushes out the side, the cable no longer sits where it should and starts sawing itself apart on every cycle.

There is no cheaper insurance on a lift than fresh cable and sound sheaves. A cable set costs a fraction of a day's labor; a dropped vehicle costs the car, the downtime, and possibly somebody standing next to it. These parts hold real weight in the air. The moment a cable shows broken strands or a sheave won't turn true, the lift comes out of service until it's fixed — no exceptions worth making.

What lifts this sheave fits

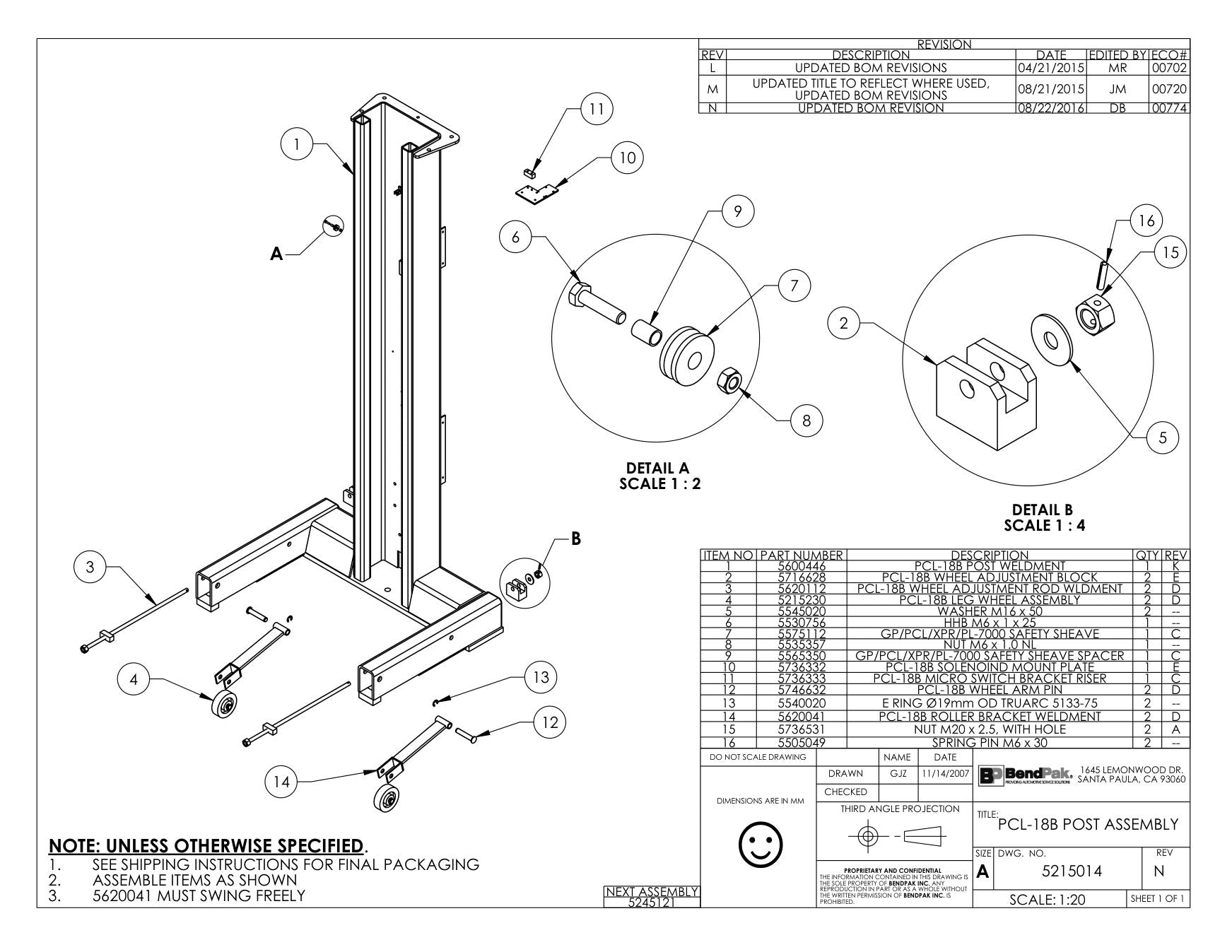

This sheave fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• BENDPAK-5260130-PCL-18B
• BENDPAK-5260185-PL-7000XR
• BENDPAK-5260330-PCL-18B
• BENDPAK-5260331-PCL-18B
• BENDPAK-5260333-PCL-18B
• GP-7-150
• GP-7LC
• GP-7LCS
• XPR-10AS
• XPR-10AS-168

Replacing your sheave

Getting a tension part in and adjusted is well within a capable shop's reach, but it's exacting: correct routing, correct order on the retention hardware, and careful equalization so no single lock takes the load first. Rush the adjustment and the lift arrives at the top crooked. For that reason the whole procedure is worth following step by step. Full step-by-step: how to replace car lift sheaves.

Find the right part for your lift

If you are not sure this part matches your setup, the fastest check is the visual breakdown: open our parts lookup, pick your model, and match your part against the drawing where every item is numbered. Can't read the model plate? our guide to finding your model number shows exactly where it lives on each lift type, and we are a phone call away if you would rather have us confirm it.

Signs a cable or sheave is worn out

Compare side to side. On a two-post, both cables should look and feel alike; a marked difference — one furrier, one rustier, one with more broken wires — flags the one that's failing. Also check that each cable still sits fully in every sheave groove and hasn't jumped a pulley. A cable riding the edge of a groove instead of the bottom wears fast and can pop off.

Parts commonly replaced at the same time

When a cable or sheave goes, the rest of the set is usually close behind — they share the same hours and the same wear. Most shops replace all the cables together and refresh the sheaves in the same visit, because the labor to open the columns is the same whether you change one part or the set. Ask us to build the full cable-and-sheave kit for your lift and you order once.

Safety notes

Treat every cable and sheave on a lift as load-bearing until proven otherwise — because it is. Replace tension parts in matched sets so they wear evenly, never reuse a cable that has been kinked or run slack, and set the carriage on its mechanical locks before you put a wrench on anything under tension. A cable that lets go does not fail politely.

Before you order

Have the lift's model, serial, and the old part in front of you when you order. Tension parts vary by production year and by standard-versus-extended height, and the fastest way to get the right one is to match length and fittings against what came off. Call and we will confirm before it ships.

Not sure this fits? Here's how to check

Pull the number off your lift's model plate first — model and serial both. Manufacturers run mid-cycle revisions that keep the model name but change hardware, so two lifts with the same name on the column can take different parts. The serial is what removes the guesswork.

Second check: compare the old part against this listing before you order. Length, mounting pattern, and thread sizes tell most of the story. If anything doesn't line up, or if the old part is too worn or broken to measure, call us with photos — we work on these lifts every week and can usually confirm fit from a picture and the lift's serial faster than you can dig through a parts diagram.

Why buy your BendPak sheave from Auto Lift Services

We install, inspect, and repair BendPak lifts every week — the 5575112 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
