The BendPak 5766145 electrical control component is the direct replacement for the BendPak lift it came off of. This is the genuine BendPak part — same fit and same working specification as the one already on your lift. Ordering the BendPak electrical control component from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.
Specifications
- Part number: 5766145
- Brand: BendPak
- Type: Genuine OEM electrical control component
- Fits: 10AP, 10APX, 10APX-181, XPR-10AS-168, XPR-10AXLS, XPR-10AXLS-181, XPR-10AXLS-LP-181, XPR-12CL, XPR-12CL-192, XPR-12CL-LTA-192, XPR-15CL, XPR-15CL-192
The one spec you cannot get wrong on lift electrics is voltage. A 110-volt motor and a 220-volt motor are not interchangeable, and neither are their contactors and overloads. Single-phase versus three-phase matters just as much. Read the data tag on the motor and match voltage, phase, and horsepower exactly — the wrong one either won't run, runs weak, or burns up the first time it's asked to lift.
Electrical parts fail by heat and by contacts. A push-button's contacts pit and stop making a clean connection; a contactor's points burn and weld or chatter; a wire lug loosens, arcs, and cooks. Motors fail on windings, bearings, or a start capacitor. The tells are a lift that runs intermittently, won't start, trips the breaker, hums without turning, or greets you with the smell of hot varnish.
What lifts this electrical control component fits
This electrical control component fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.
- 10AP
- 10APX
- 10APX-181
- XPR-10AS-168
- XPR-10AXLS
- XPR-10AXLS-181
- XPR-10AXLS-LP-181
- XPR-12CL
- XPR-12CL-192
- XPR-12CL-LTA-192
Replacing your electrical control component
A motor replacement hinges on matching the data tag — voltage, phase, and horsepower — before anything else, then disconnecting power, transferring the wiring, and coupling it to the pump. Verify rotation and that the motor comes up to speed without tripping the overload. Because it's high-current work, walk through the complete procedure before you start. Not sure on the procedure? Find your lift in our parts lookup or call and we will walk you through it.
Find the right part for your lift
The surest way to get the right part is to work from your lift's own breakdown. open our parts lookup, choose your model, and every part is mapped on the drawing with its number and price. If you cannot find the model plate, our guide to finding your model number explains where each lift type hides it, and our phone line is open if you want a hand.
Signs of an electrical fault
The electrical triage list: dead lift — check breaker, disconnect, and incoming voltage first; intermittent — hunt a loose or corroded connection; hums but won't turn — capacitor or seized pump; trips the overload — motor or binding pump drawing high current; burnt smell — find the overheated point before running again; chattering contactor — low coil voltage or worn points. Power off before you probe or tighten anything.
Parts commonly replaced at the same time
The parts near an electrical fault are worth a look while the cover is off — a chattering contactor, a marginal switch, brittle wiring. Handling them together on a de-energized circuit beats repeated trips into the panel. Tell us your model, voltage, and phase and we will confirm the related components.
Safety notes
The control system is a safety system, so respect it. De-energize and verify before servicing, keep line and low-voltage wiring where the diagram puts them, and never bypass an interlock to get a lift running. If the fix involves the overhead shutoff or the lock circuit, be certain it works before the lift carries a vehicle.
Before you order
Before you buy an electrical part, pull the voltage and phase off the plate along with model and serial — they determine the fit. A wrong-phase contactor or motor is a guaranteed return. Share the old part's markings and we will match the correct component for your lift's control system.
Ordering the right revision
Before this goes in the cart, grab two things off your lift: the model number and the serial number, both on the manufacturer's plate. The serial matters more than most people expect — lift makers revise components between production runs without renaming the lift, and the run your serial falls in determines which revision of this part is correct.
If you are working from a failed part rather than a plate, measure what you have and photograph how it mounts. Send that to us along with the lift brand, and we will check it against the same parts breakdowns our own techs use in the field before you commit to the order.
Why buy your BendPak electrical control component from Auto Lift Services
We install, inspect, and repair BendPak lifts every week — the 5766145 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
About this bendpak 5766145 micro switch
The bendpak 5766145 micro switch is a direct-fit replacement engineered to restore original manufacturer performance on the lift model it services. Every piece we ship carries the exact dimensional and material specifications the OEM published for that application. Fitment on this component is critical: it interfaces with adjacent hardware in ways that any deviation from spec can drive premature wear on nearby parts or trigger the lift's mechanical safety systems into an unexpected condition. Shops that source this from us instead of a generic aftermarket substitute consistently report zero fitment issues on first-time installation.
Technical specification & installation notes
Cycle life on this piece depends heavily on operating conditions. In a typical commercial repair shop running 6-10 lifts per day, the bendpak 5766145 micro switch should deliver five to eight years of service before showing measurable wear against the OEM inspection specification. In a high-volume tire or alignment shop running 20+ lifts per day per bay, expect service every three to five years. It is designed to be a serviceable component; when it does wear it wears within safe operating margins that trigger visible symptoms — drift, uneven wear, minor leakage — well before failure becomes a safety issue.
Shipping & ordering
Freight covers the continental United States on all standard orders. We ship UPS or FedEx ground for parts under 30 lb; heavier assemblies quote at published carrier rates. International orders on the bendpak 5766145 micro switch require a freight quote — email dimensions, weight, and destination country to [email protected] and we return a rate within one business day. Alaska, Hawaii, and US territories quote at published rates and typically take five to ten business days depending on carrier and destination.
Warranty coverage
Consumables and wear parts like this are covered under the manufacturer defect warranty for twelve months. Because the bendpak 5766145 micro switch is a component that eventually needs replacement in normal operation, warranty coverage specifically addresses failure due to manufacturing defect, not failure due to normal end-of-life wear. Our team can help distinguish between the two on a phone call if there is any question after installation — call 800-674-9302 and describe the failure pattern; we will tell you honestly whether it looks like a warranty case.
Cross-reference & fitment
Cross-reference on the bendpak 5766145 micro switch is straightforward: match the OEM part number from the lift's parts breakdown against the number on your original invoice. If the numbers match, the component fits. If your lift's parts breakdown lists a superseded or alternate number, we accept the superseded value on the phone as confirmation of fit. When a manufacturer has issued a running change during production, we track the change in our catalog so ordering by the older number automatically pulls the current-spec replacement.
Questions about the bendpak 5766145 micro switch? Call our parts desk at 800-674-9302 or email [email protected]. We ship nationwide from our Iowa warehouse and answer fitment questions within one business day.

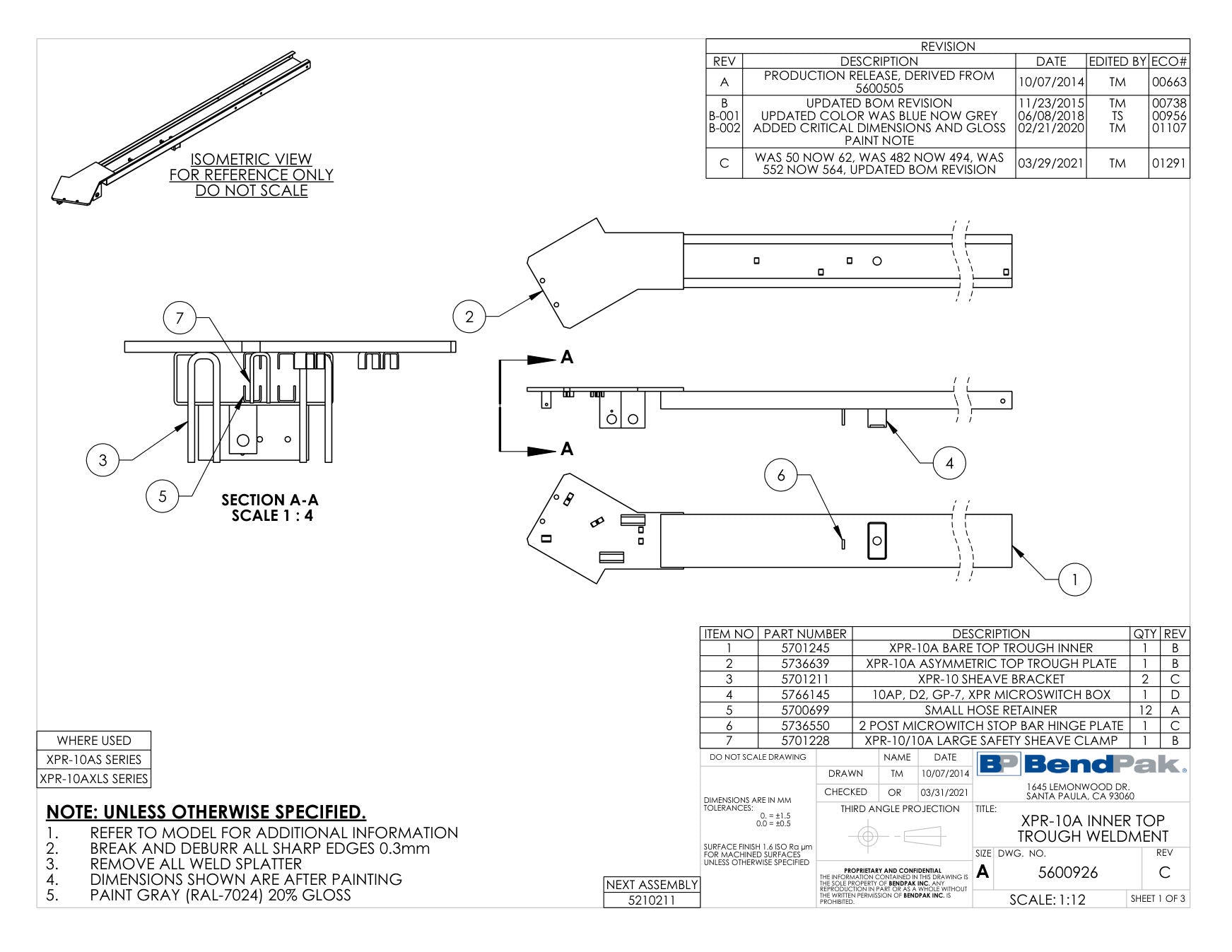

BendPak 5766145 Micro Switch Box; 10AP, D2, GP-7, XPR
