The Challenger 10354 is the direct-replacement hydraulic hose for the Challenger lift it came off of — the genuine part, same fit and same working specification as the one already on your lift. Ordering the Challenger hydraulic hose from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: 10354
• Brand: Challenger
• Type: Genuine OEM hydraulic hose

Not every hydraulic problem is the cylinder. A lift that lowers itself overnight usually has a lowering valve that won't seat or a leaking check, not a bad seal. A lift that jerks or won't reach full height can be a tired pump or a flow valve out of adjustment. And a hose that's cracked near the crimp will spray under pressure — a real hazard, not just a mess to mop up.

The power unit bundles the motor, pump, reservoir, and valves into one hangable box, usually bolted to a column or a pump stand. Press up and the motor spins the pump, which draws fluid from the reservoir and sends it to the cylinder; release, and the dump valve routes it back. The single spec that matters most is voltage — 110 versus 220 — because the wrong one turns the whole unit into a paperweight.

Related parts for this lift

The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.

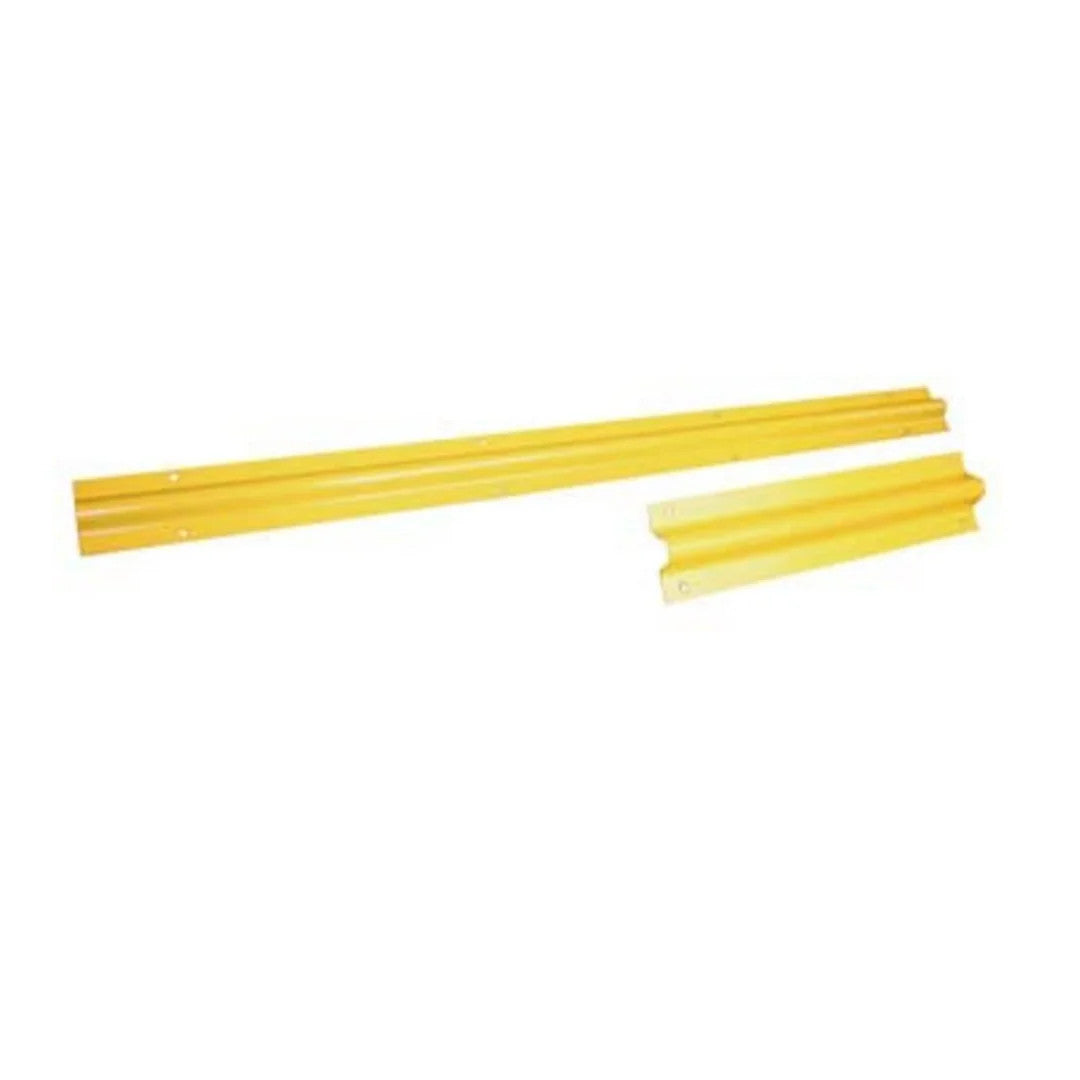

• Challenger 10354-1 Hose Cover (64")
• Challenger 10354-2 Hose Cover (20")
• Challenger 10354-3 Hose Cover Corner
• Challenger 10354-4 Hose Cover 34-1/4"

Replacing your hydraulic hose

Swapping a hydraulic hose is mostly about relieving pressure first, catching the fluid, routing the new line so it can't rub or pinch, and bleeding the cylinders afterward. Match the new hose to the old for length, inner diameter, and end fittings. Since a hose under pressure will spray if it's cracked or loose, the full walkthrough is worth reading before you start. Full step-by-step: how to replace a car lift hydraulic hose.

Find the right part for your lift

Landed here but not 100% sure it is your part? Grab the model and serial from the data plate and open our Challenger parts lookup for the visual breakdown — the manufacturer-style drawing with every item numbered so you can match yours exactly. Plate missing? our guide to finding your model number helps, and we identify lifts from photos every week if you would rather ask.

Signs of a hydraulic problem

Pull the reservoir cap and look at the fluid. Clear amber (or clean red for ATF) is good; milky or foamy means water has gotten in and the pump is aerating; dark and gritty means the system is wearing and the filter is loading up. Fluid condition tells you as much about the hydraulic health of the lift as any single part will.

Parts commonly replaced at the same time

Plan the whole repair, not just the one part. Cylinders, seals, hoses, and fittings share a pressure system and a service interval, so replacing the obvious failure without the worn companions just sets up the next leak. Give us your model and serial and we will assemble the complete hydraulic kit.

Hydraulic fluid

The usual fill is ISO-32 hydraulic oil, with some legacy lifts running Dexron ATF; confirm which your lift uses before topping off and keep the two separate. Bleed after filling and check the level again once the air is out — and see your manual for the exact capacity, which is model-specific.

Safety notes

Clean matters as much as tight in a hydraulic job — a speck of grit through a valve or seal will cost you the repair twice. Cap ports the instant a line is open, use the correct oil, bleed thoroughly, and leak-check at full pressure. Always set the lift on its locks before working underneath it.

Before you order

Get the details right up front: model, serial, hose lengths, fitting types, and power-unit voltage where it applies. If the cylinder is only weeping, a seal kit is often the better call. Order the oil you will need for the refill at the same time, and we will verify fit before anything leaves the shelf.

Check your lift's serial before ordering

The most common reason a lift part comes back is not a defect — it is a revision mismatch. Manufacturers change sub-parts between production runs while keeping the same lift model name, so "it fits my lift model" is not always enough. The model plate carries the serial number that pins your lift to a specific run, and that is the number that settles which version of this part belongs on your lift.

Can't find the plate? Measure the old part — overall length, bolt-hole spacing, thread size on anything threaded — and photograph it from a couple of angles. Send that with your lift's brand and rough age and we will match it against the parts breakdowns we service from every week.

Why buy your Challenger hydraulic hose from Auto Lift Services

We install, inspect, and repair Challenger lifts every week — the 10354 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
