The Challenger AD-81795 is the direct-replacement power unit for the Challenger lift it came off of — the genuine part, same fit and same working specification as the one already on your lift. Ordering the Challenger power unit from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: AD-81795
• Brand: Challenger
• Type: Genuine OEM power unit
• Fits: 4115, CL16

The power unit bundles the motor, pump, reservoir, and valves into one hangable box, usually bolted to a column or a pump stand. Press up and the motor spins the pump, which draws fluid from the reservoir and sends it to the cylinder; release, and the dump valve routes it back. The single spec that matters most is voltage — 110 versus 220 — because the wrong one turns the whole unit into a paperweight.

Hydraulic parts fit by the numbers, and the numbers are unforgiving. A cylinder has to match working length and port type; a hose is spec'd by inner diameter, pressure rating, and end fittings; a power unit lives or dies on voltage. Even seal kits differ by who built the cylinder — the same lift model can carry two cylinder brands with different seal profiles. Order to the actual part, not the lift name.

What lifts this power unit fits

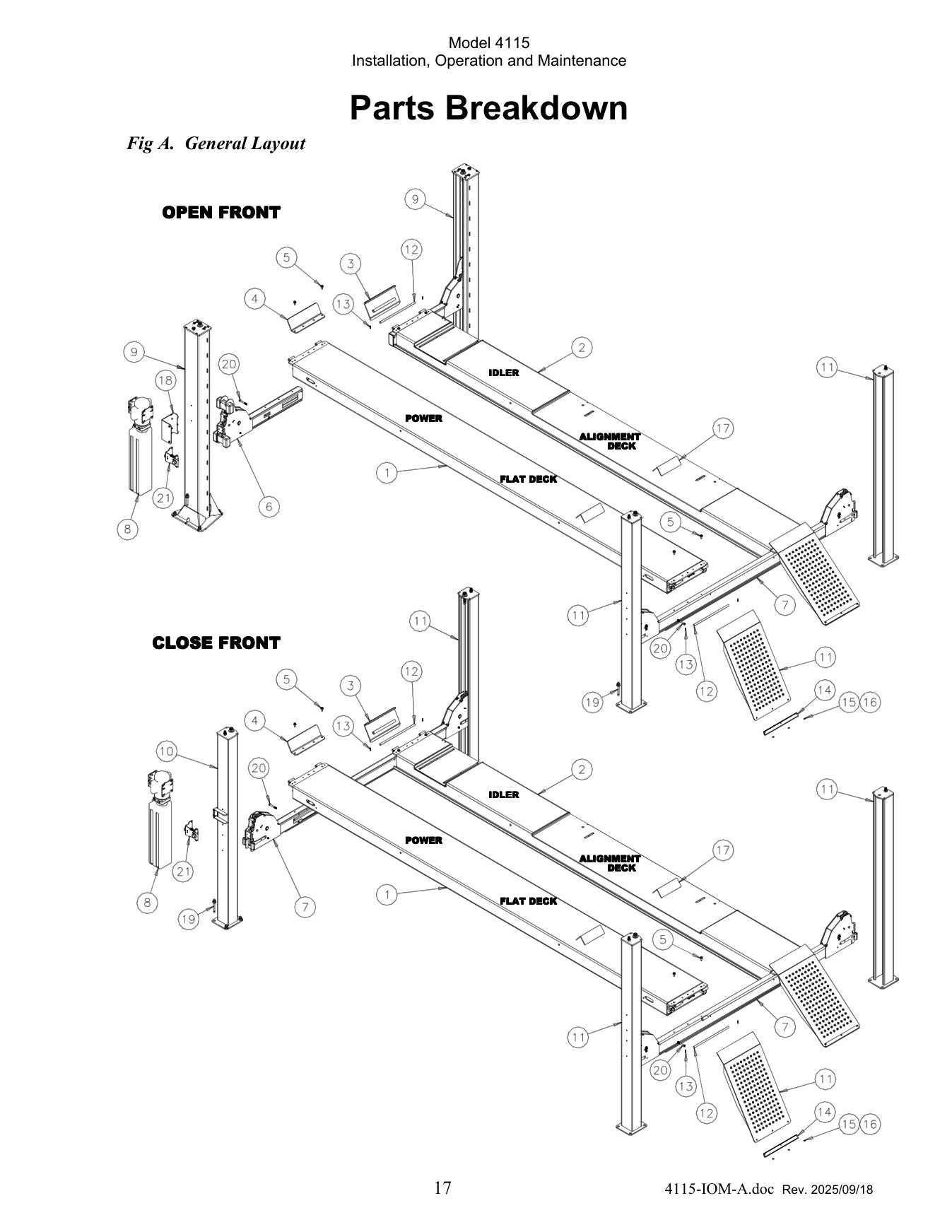

This power unit fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• 4115 — see the exploded parts breakdown for this lift
• CL16 — see the exploded parts breakdown for this lift

Replacing your power unit

Replacing a hydraulic cylinder comes down to relieving all pressure, capping the lines so nothing gets contaminated, getting the old cylinder out and the new one in, then bleeding the air and leak-checking under load. The exact removal path differs by lift style, and skipping the bleed leaves the lift spongy. Because a cylinder holds a vehicle in the air, the full procedure is worth following start to finish. Full step-by-step: how to replace a car lift power unit.

Find the right part for your lift

Want to be sure before you buy? Pull the model and serial off your lift's plate and open our Challenger parts lookup to open the exploded parts breakdown for your model — find your part on the drawing and you know it fits. New to finding your model number? our guide to finding your model number covers it, or send a photo of the plate and we will read it for you.

Signs of a hydraulic problem

The fast hydraulic triage: puddle on the floor is an external leak (find it uphill); a lift that won't hold overnight is an internal leak (cylinder or valve); a spongy feel is air or a piston seal; milky fluid is water (service it); a slow or noisy raise is pump, fluid, or air. Match the symptom to the part before you throw a cylinder at a problem that's really a five-dollar washer.

Parts commonly replaced at the same time

Hydraulic parts travel in company: a leaking cylinder often needs a seal kit, a tired hose, and a fluid change all at once. Since you are relieving pressure and bleeding anyway, do the related wear items in the same visit. Tell us your model and we will pull the matching seals, hose, and oil.

Hydraulic fluid

Fluid matters on any hydraulic repair: most lifts take an ISO-32 hydraulic oil, though a number of older ones spec Dexron ATF. Match whatever is already in the reservoir rather than mixing types, and top off to the level your manual specifies after bleeding — capacities differ from model to model.

Safety notes

The failure mode that hurts people is slow drift-down from a bad seal or trapped air, so never leave a hydraulic repair half-bled. Support the lift on its mechanical locks while you work, relieve pressure before opening the system, and cycle it several times empty — watching for drift — before a vehicle goes on it.

Before you order

A little prep prevents a wrong order: confirm model and serial, measure hoses and note fitting sizes, and check whether a reseal solves it before buying a complete cylinder. Budget for oil and bleeding as part of the repair. We will confirm the right part for your production run before it ships.

Ordering the right revision

Before this goes in the cart, grab two things off your lift: the model number and the serial number, both on the manufacturer's plate. The serial matters more than most people expect — lift makers revise components between production runs without renaming the lift, and the run your serial falls in determines which revision of this part is correct.

If you are working from a failed part rather than a plate, measure what you have and photograph how it mounts. Send that to us along with the lift brand, and we will check it against the same parts breakdowns our own techs use in the field before you commit to the order.

Why buy your Challenger power unit from Auto Lift Services

We install, inspect, and repair Challenger lifts every week — the AD-81795 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
