The Challenger TCS4-07-03 sheave is the direct replacement for the Challenger lift it came off of. This is the genuine Challenger part — same fit and same working specification as the one already on your lift. Ordering the Challenger sheave from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: TCS4-07-03
• Brand: Challenger
• Type: Genuine OEM sheave
• Fits: Q4P09

Cable failure almost never happens all at once. A strand pops here, a groove wears oversize there, a sheave bushing walks out the side, and the cable starts cording where it turns. Left alone, the frayed section keeps losing strands until the day it lets go — usually with weight on the lift. That is the whole reason these tension parts get inspected and swapped on a schedule instead of run to failure.

Rust is the quiet killer of lift cable. A shop in a salt-belt climate, or a lift that sat in a damp corner for a few years, loses cable to corrosion long before it ever wears out mechanically. Surface rust you can live with; rust that has eaten into the strands or frozen a sheave bushing you cannot. Once the steel is pitting under the outer wires, the rated strength is already gone.

What lifts this sheave fits

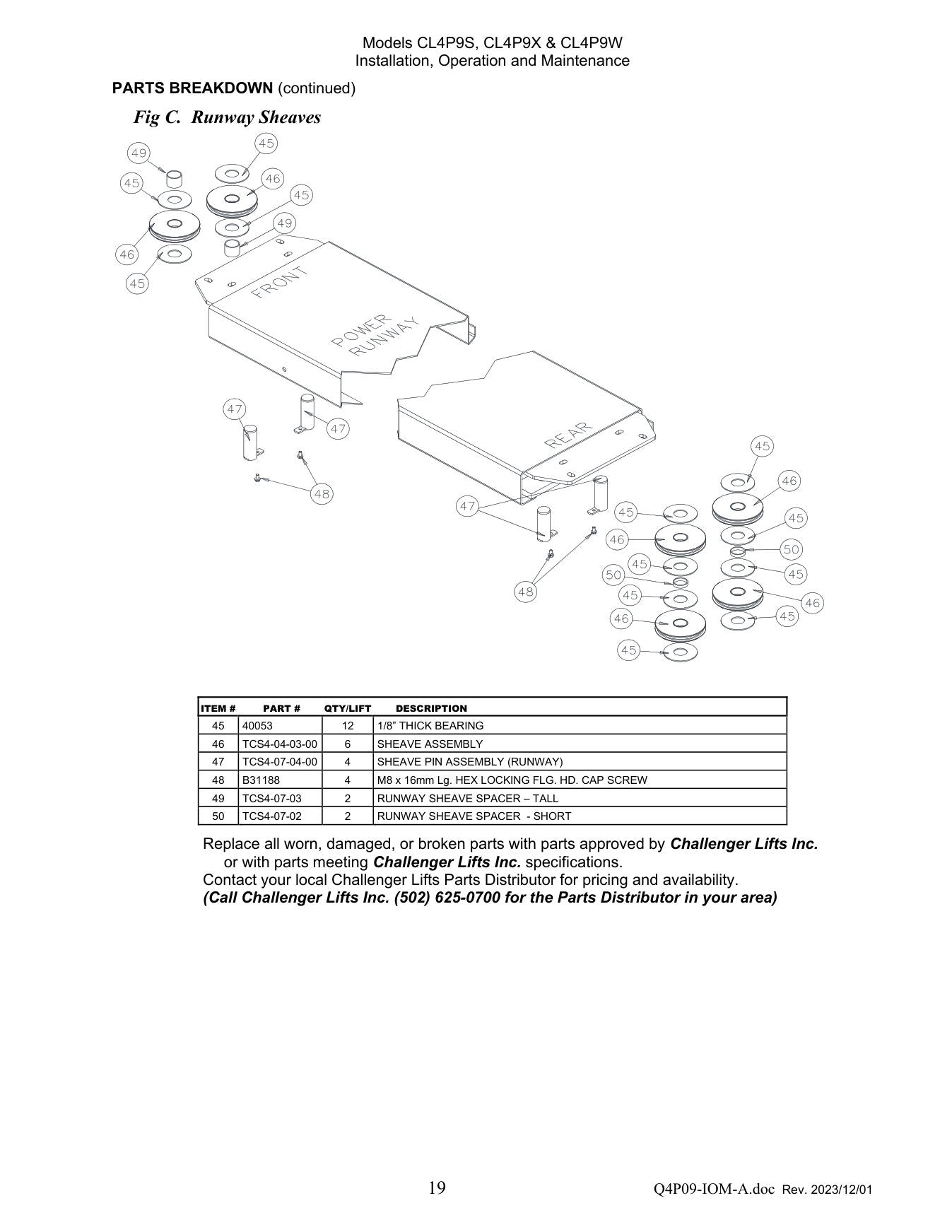

This sheave fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• Q4P09 — see the exploded parts breakdown for this lift

Related parts for this lift

The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.

• Challenger TCS4-04-03-00 Sheave Assembly
• Challenger TCS4-04-14 Sheave Guard
• Challenger TCS4-07-02 Runway Sheave Spacer - Short
• Challenger TCS4-07-04-00 Sheave Pin Assembly
• Challenger TCS4-07-05-00 Cable Pull Bar
• Challenger TCS4-11-01 Driver Side Rear Cable

Replacing your sheave

A lock-release cable replacement is a quick job with a safety payoff: the new cable has to pull every pawl out of its ladder at the same time so the lift descends level. Route it, set the tension, and cycle the lift watching that all the locks release together. The exact routing and adjustment vary by lift, so walk through the full procedure before you rely on it. Full step-by-step: how to replace car lift sheaves.

Find the right part for your lift

If you are not sure this part matches your setup, the fastest check is the visual breakdown: open our Challenger parts lookup, pick your model, and match your part against the drawing where every item is numbered. Can't read the model plate? our guide to finding your model number shows exactly where it lives on each lift type, and we are a phone call away if you would rather have us confirm it.

Signs a cable or sheave is worn out

Watch the lift work, not just the parts. If one lock clicks noticeably before the others on the way up, or the lift lands one corner first on the way down, a cable has stretched or a sheave is dragging. Then inspect the suspect cable end to end for broken strands and the sheaves for groove wear. A lift that won't equalize is telling you a tension part is going.

Parts commonly replaced at the same time

The parts around this one tend to wear on the same clock — companion cables, the sheaves they run over, and the hardware that retains them. Bundling them into one order and one repair saves a second teardown. We keep the cross-references for your lift, so one call gets the whole set right.

Safety notes

Cables stretch and sheaves wear on a schedule; failures happen when someone stretches that schedule. Change tension parts as a set, confirm each cable is seated in every sheave before you tension it, and keep the safety locks in the loop the entire time you work — they are what stands between the load and the floor if something slips.

Before you order

Order the whole wear set, not just the one that failed — cables and sheaves age together, and doing them in one visit is cheaper than two. Have your model and serial ready so we can pull the right lengths and fittings for your lift, and ask if you want the companion parts added.

Ordering the right revision

Before this goes in the cart, grab two things off your lift: the model number and the serial number, both on the manufacturer's plate. The serial matters more than most people expect — lift makers revise components between production runs without renaming the lift, and the run your serial falls in determines which revision of this part is correct.

If you are working from a failed part rather than a plate, measure what you have and photograph how it mounts. Send that to us along with the lift brand, and we will check it against the same parts breakdowns our own techs use in the field before you commit to the order.

Why buy your Challenger sheave from Auto Lift Services

We install, inspect, and repair Challenger lifts every week — the TCS4-07-03 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
