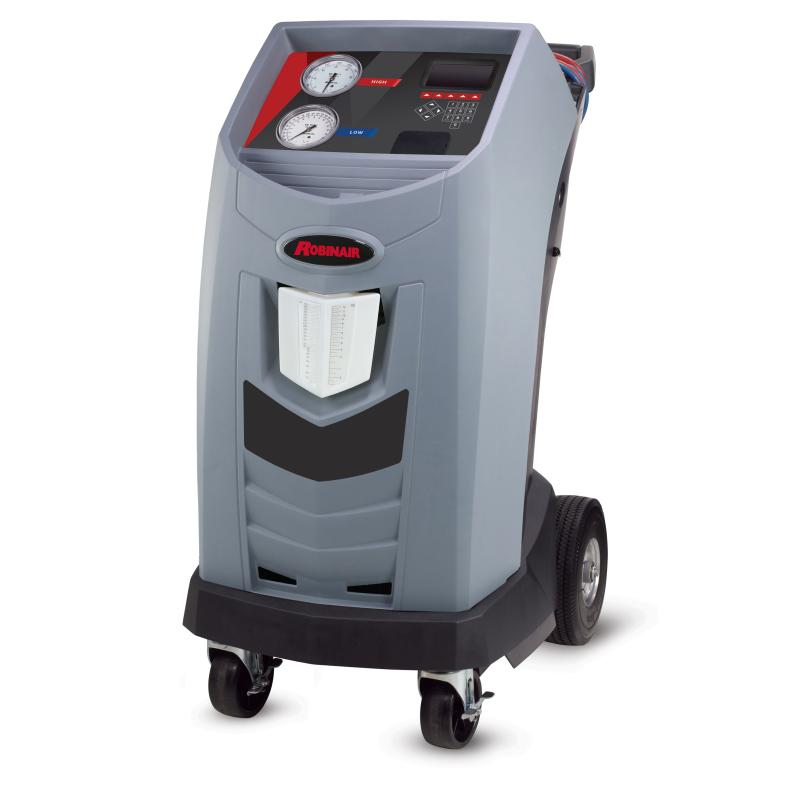

About the RobinAir 34788NI-H R134a Hybrid-Ready AC Machine

What the "H" actually means

The RobinAir 34788NI-H is the same core R-134a automatic machine as the standard 34788NI, with one critical difference: it's SAE J3030-compliant, which means it can service the AC systems on hybrid and electric vehicles that share a refrigerant loop with high-voltage electronics. If your shop touches Priuses, hybrid trucks, plug-in SUVs, or any battery-electric vehicle running an R-134a loop, the 34788NI-H is the correct machine and the plain 34788NI is not.

Why hybrid-ready is not optional on those vehicles

Hybrid and EV AC systems use non-conductive POE oil, and their compressors sit in a circuit that also cools the traction battery or drive electronics. If oil from a conventional shop compressor cross-contaminates a hybrid loop, you can drop insulation resistance below spec and — in the worst case — create a high-voltage fault path. SAE J3030 governs the extra oil-separation, purity, and cross-contamination protections a service machine needs to prevent that. The RobinAir 34788NI-H is built to that spec; older R-134a machines are not.

Separated oil return and purity checking

Structurally, the 34788NI-H isolates the used-oil return so oil from the last non-hybrid vehicle you serviced cannot end up in the next hybrid you plug into. It also includes hybrid-specific refrigerant purity checks so the compressor isn't fed a contaminated charge. Those are the two failure modes that make hybrid AC work risky on the wrong equipment, and both are designed out on the RobinAir 34788NI-H.

Recovery, deep vacuum, and automatic recharge

Everything you like about the standard 34788NI carries over to the 34788NI-H: fully automatic recover, deep-vacuum evacuate, weighed oil inject, and weighed recharge as a single programmed cycle. Recovery is fast enough that a hybrid Prius service doesn't monopolize a bay, and the vacuum pump pulls the system down deep enough to drive residual moisture out — which matters more, not less, on hybrid systems where moisture and high-voltage electronics don't mix.

Vehicle charge data and OEM adherence

The RobinAir 34788NI-H includes an onboard vehicle charge database that skews heavier toward hybrids and EVs than the base 34788NI. As always, treat the underhood label as authoritative — hybrid OEMs are sensitive about charge weight, and being off by half an ounce can throw the battery-cooling loop into a fault code that will bring the vehicle back on a hook. The 34788NI-H makes hitting the target charge repeatable.

Refrigerant identification is even more important on hybrids

Refrigerant identification is best practice on any recovery machine, and it's non-negotiable on the RobinAir 34788NI-H. A standalone identifier belongs on the cart with the machine; you never want to discover a contaminated charge inside a hybrid loop after the fact. We include that conversation with every 34788NI-H delivery.

Install, service, and where the 34788NI-H fits

We deliver, install, calibrate, and demonstrate every RobinAir 34788NI-H we sell, and our techs are SAE-certified on both R-134a and R-1234yf. Shops still running only conventional gas cars can save money on the standard RobinAir 34788NI; heavy-truck bays should look at the 34888HD; and any shop servicing 2015-and-newer vehicles also needs an R-1234yf machine like the AC1234-4 or AC1234-9. Our AC machines page and our refrigerant recovery machine overview walk through which tier fits which shop.

Ready to spec one for your bay? Call 800-674-9302 or reach out via our contact page.

Common questions about the RobinAir 34788NI-H R134a Hybrid-Ready AC Machine

Who is the Robinair 34788ni H r134a Hybrid Ac Machine designed for?

It is aimed at shops adding hybrid and EV service to an existing R-134a workflow. It also fits shops that match this profile: dealer service departments that need to protect ICE customers from cross-contaminated oil. If your shop lines up with either of those, this is the right tier in the buying decision.

How does it install in my bay?

The machine ships crated from the factory. Auto Lift Services delivers, uncrates, anchors, and cycles it in your bay, and our team handles startup with your crew so the first job through it is a clean one. Call 800-674-9302 for a delivered-and-installed quote.

When is the Robinair 34788ni H r134a Hybrid Ac Machine the wrong choice?

Skip it if you do not see hybrid vehicles yet — the standard 34788NI is the right dollar-per-cycle. In that case a different tier in the same line is usually the right call, and our team can route you to it on the phone. We would rather sell you the correct machine on the first try than take a return later.

What warranty and support come with it?

The machine ships with the manufacturer's factory warranty. Auto Lift Services stocks the common wear parts and dispatches service nationwide. If you are keeping this equipment in production for years, our parts pipeline is the reason to buy from a specialist rather than a general equipment reseller.

Ordering, freight, and lead time

We stock or drop-ship the RobinAir 34788NI-H R134a Hybrid-Ready AC Machine direct from the factory. Standard freight for shop-equipment machines is common-carrier LTL to a commercial address with a dock, with lift-gate freight available for shops without a dock — call for the lift-gate adder before ordering. Lead time on in-stock units is typically 3-10 business days to the dock; back-ordered configurations run longer and we quote a specific date before we take the order.

Payment options include ACH, wire, credit card, and 0% APR financing (12-month, 90-day defer) through our financing partner. Larger dealer POs and net-terms accounts are welcome — email sales@autoliftserv.com for the paperwork.
