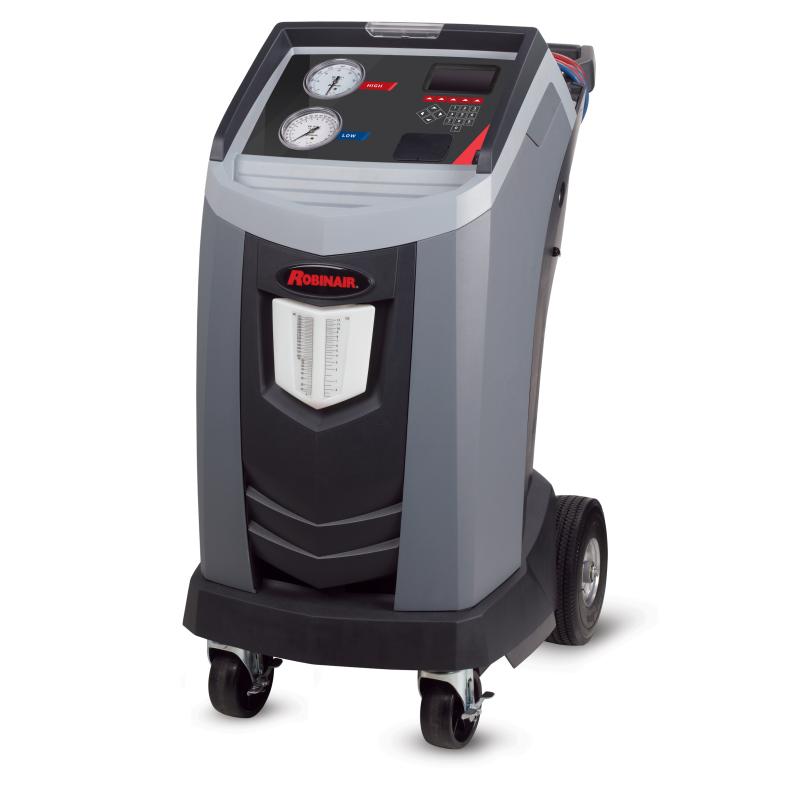

About the RobinAir AC1234-4SL R1234yf AC Machine with Scale Lock

The AC1234-4 with a scale you can move

The RobinAir AC1234-4SL is functionally identical to the AC1234-4 with one important addition: a mechanical scale lock that immobilizes the internal weight scale during transport. If your machine sits bolted to one bay for its whole service life you don't need the SL. If it travels — mobile AC service, dealer group between-store loans, a shop with a satellite bay, a heavy-equipment tech going out to the customer — the scale lock is what keeps the load cell from being knocked out of calibration every time the machine moves.

Who buys the AC1234-4SL

Mobile AC service techs, roving fleet techs, marine and RV service outfits that go to the boat or the coach, agricultural dealers with field-service trucks, and any operation whose service model puts equipment on wheels. Also: any shop that expects to loan the machine between locations. The RobinAir AC1234-4SL is the right buy the moment you know the unit will move; retrofitting a scale that got jarred on a trailer is more expensive than buying the SL up front.

SAE J2843 compliance, same as the base AC1234-4

The 4SL meets SAE J2843, the recovery-efficiency and purity standard for R-1234yf, exactly the same as the standard AC1234-4. The scale lock is a mechanical addition; it doesn't change the machine's compliance status or the way it runs a job. Traveling techs get to serve real commercial customers without any compliance asterisk on the paperwork.

Recovery, deep vacuum, and automatic recharge

Recovery, deep vacuum, oil inject, and weighed recharge all run automatically on the RobinAir AC1234-4SL the same way they do on the base machine. Cycle times are the same, the vacuum pump is the same, and the purity checks required by J2843 are the same. Nothing about the SL variant compromises performance — it just protects the scale during moves.

Purity check and refrigerant identification

Onboard purity checking on the AC1234-4SL is the same J2843-compliant check as the base AC1234-4, and we still recommend a standalone refrigerant identifier on the cart. Mobile techs actually have a higher exposure to unknown refrigerant than in-shop techs because you're servicing whatever pulls into the parking lot — sometimes vehicles that have been topped off in ways you'd never see under a shop roof. The identifier pays for itself the first time it catches a bad charge before you contaminate the tank.

Vehicle charge data and the underhood label

The RobinAir AC1234-4SL includes the same onboard vehicle-specific charge database as the standard AC1234-4. Underhood-label priority still applies: the database is a starting point, the label is authoritative. Mobile techs benefit disproportionately from the database because you're not standing in front of a shop laptop looking things up — the machine has it.

Install, service, and where the AC1234-4SL fits

We deliver, calibrate, and demonstrate every RobinAir AC1234-4SL we sell, and our techs are SAE-certified on both R-134a and R-1234yf. Warranty and service run through us directly. Shops that don't move their machine can save on the standard AC1234-4. Shops that want touchscreen and VIN lookup on R-1234yf should look at the AC1234-9. And if you also service R-134a — you probably do — pair the AC1234-4SL with a 34788NI or 34788NI-H on the same floor. Our AC machines page and the refrigerant recovery machine article cover the full lineup.

Ready to spec one for your bay? Call 800-674-9302 or reach out via our contact page.

Common questions about the RobinAir AC1234-4SL R1234yf AC Machine with Scale Lock

Who is the Robinair ac1234 4sl r1234yf Ac Machine Scale Lock designed for?

It is aimed at shops that move AC machines between bays or facilities. It also fits shops that match this profile: satellite locations where machines get more physical handling than a stationary bench. If your shop lines up with either of those, this is the right tier in the buying decision.

How does it install in my bay?

The machine ships crated from the factory. Auto Lift Services delivers, uncrates, anchors, and cycles it in your bay, and our team handles startup with your crew so the first job through it is a clean one. Call 800-674-9302 for a delivered-and-installed quote.

When is the Robinair ac1234 4sl r1234yf Ac Machine Scale Lock the wrong choice?

Skip it if the machine will sit in one bay forever — the AC1234-4 saves a little at the same accuracy. In that case a different tier in the same line is usually the right call, and our team can route you to it on the phone. We would rather sell you the correct machine on the first try than take a return later.

What warranty and support come with it?

The machine ships with the manufacturer's factory warranty. Auto Lift Services stocks the common wear parts and dispatches service nationwide. If you are keeping this equipment in production for years, our parts pipeline is the reason to buy from a specialist rather than a general equipment reseller.

Ordering, freight, and lead time

We stock or drop-ship the RobinAir AC1234-4SL R1234yf AC Machine with Scale Lock direct from the factory. Standard freight for shop-equipment machines is common-carrier LTL to a commercial address with a dock, with lift-gate freight available for shops without a dock — call for the lift-gate adder before ordering. Lead time on in-stock units is typically 3-10 business days to the dock; back-ordered configurations run longer and we quote a specific date before we take the order.

Payment options include ACH, wire, credit card, and 0% APR financing (12-month, 90-day defer) through our financing partner. Larger dealer POs and net-terms accounts are welcome — email sales@autoliftserv.com for the paperwork.
