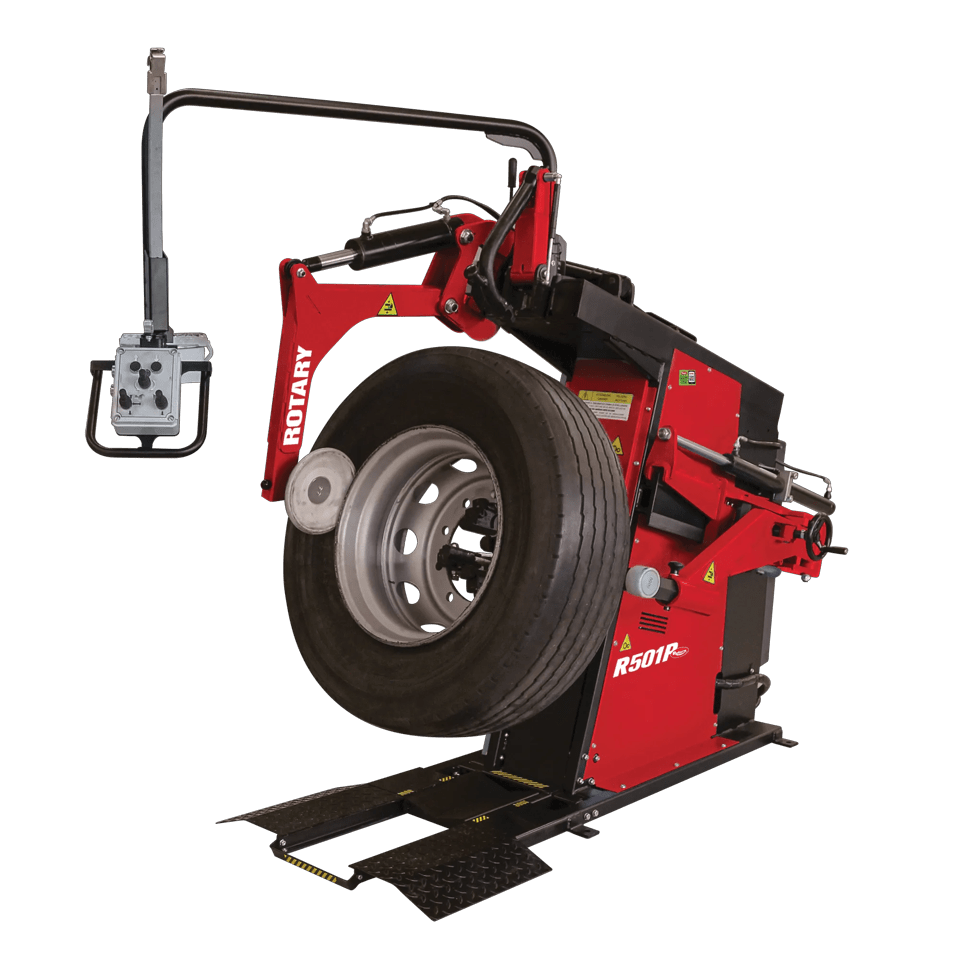

The Rotary R501P Heavy-Duty Fleet Tire Changer: A heavy-duty rim-clamp changer built for fleet and medium-duty truck work — big wheels, big beads, big daily volume.
Key Features
What the Rotary R501P Heavy-Duty Fleet Tire Changer brings to the bay:
- Heavy-duty tilt-back tower and reinforced column sized for medium-duty truck, RV, and large-fitment work.
- Extended clamping range and powered bead-breaker force calibrated for heavy sidewalls that lock up on light-duty changers.
- Larger table-top and reinforced clamps to hold heavy commercial wheels flat without deflection.
- Dual-motor and higher-torque options where fleet cycle times matter more than initial price.
- Standard duckhead tool plus optional heavy-duty helper attachments for the biggest fitments.
- Same Rotary factory parts pipeline and Auto Lift Services install-and-service coverage nationwide.
Best For Shops That
- fleet shops running Class 3-6 medium-duty trucks and box vans
- RV service centers that see 22.5" fitments and heavy sidewalls every week
- ag/industrial shops with mixed light and medium-duty wheel work
- tire dealers with a fleet contract that demands consistent daily throughput on big wheels
Do Not Buy If
- your work is 100% passenger car and light-duty — the R145DR or R146RP is a better fit
- you need pure premium-alloy leverless work — the R1200 or R1250 is the correct tier
- your bay does not have the electrical or air capacity for a heavy-duty machine
- you rarely see anything bigger than a 20" wheel — the payback is not there
Most shops that end up on this page were searching some form of "rotary r501p heavy duty fleet tire changer" — the machine's exact brand-model-descriptor phrase. That is the fastest way to find the Rotary R501P Heavy Duty Fleet Tire Changer once you know the model you want; if you were routed here from a category page or a Google result and want a fit-check for your bay, our team is a phone call away.
About the Rotary R501P Heavy-Duty Fleet Tire Changer
Who the Rotary R501P is built for
The Rotary R501P Heavy-Duty Fleet Tire Changer is engineered for the shop that lives between passenger-car tire work and full medium-duty truck work. Commercial fleets running three-quarter-ton and one-ton pickups, agricultural service, municipal fleets, RV shops, larger SUV/off-road tire specialists, and tow-and-recovery operations are the target user. It handles the wheels a passenger-class machine chokes on — 19.5-inch commercial pickup rims, taller sidewall LT tires, heavier steel wheels, larger diameter alloys on dually chassis — without stepping all the way up to a full semi-truck changer. If you have been jamming heavy pickup tires onto a passenger-duty machine and hoping for the best, the R501P is the honest upgrade.
Heavy-duty tower, clamp, and bead-breaker
The R501P is built on a heavier chassis, a stronger tower, and a larger clamp table than the passenger-class Rotary machines. The bead-breaker cylinder is sized to handle the initial-seat bond on commercial LT and 19.5-inch tires, which is a fundamentally different challenge than breaking a passenger tire loose. The clamp jaws grip larger diameters and heavier weights, and the drive system is spec'd for the higher duty cycle a fleet shop puts on the machine. It is not simply a scaled-up passenger unit — the mechanicals underneath are designed for the load.
TPMS-safe operation and wheel damage
Commercial pickup and fleet wheels frequently carry TPMS sensors, and the R501P handles them the same way any well-configured rim-clamp machine does: with proper technique, rim protectors on the clamps, and a duckhead protector on the mount/demount tool. Fleet steel wheels are more forgiving than premium alloys, but larger-diameter aftermarket rims on modern heavy pickups increasingly are not, and the R501P's geometry is set up to keep steel off the rim edge when the tech follows procedure. Shops changing a lot of premium alloys should still consider a leverless machine for that specific volume.
Cycle time on commercial pickup work
Where the R501P earns its keep is on the tires that took twice as long on your old machine. The heavier bead-breaker, larger clamp capacity, and higher-duty drive train mean the tech is not fighting the machine on a 19.5-inch commercial tire or a stiff 37-inch off-road LT. That is the difference between quoting fleet tire work confidently and turning it away. Our heavy-duty tire changer article covers where the R501P fits in a fleet-service tool set.
Install and shop requirements
The R501P is a stationary anchor-bolted machine that needs a level concrete slab rated for its footprint and operating loads. Expect a single-phase or three-phase electrical drop depending on configured motor, and a dry shop-air supply at typical automotive pressures. Plan a working footprint of roughly 7 by 7 feet or more so the tech has room to walk heavier wheels onto the table without fighting geometry. Because fleet shops usually run a matching balancer for the same wheel range, see our Rotary wheel balancers for pairing options.
Nationwide install and long-term service
Auto Lift Services installs, calibrates, and services the Rotary R501P nationwide. Fleet-duty machines earn their money on uptime, so our field commissioning includes uncrating, leveling, anchoring, air, electric, and a full cycle-test with your team before the shop takes possession of a working machine — not a boxed one. Bead-breaker seals, clamp jaws, protector kits, and drive-side wear parts are stocked and ship from our parts catalog.
How the R501P compares to its siblings
Choose the R501P when your job mix is heavy pickup, commercial light-truck, RV, and larger SUV/off-road work and you need a machine that will not flinch at 19.5-inch rims. Step down to the R146RP or R145DR if you are really running mostly passenger-class work and only see the occasional heavy tire. Step all the way up to the R560 if you actually change medium and heavy truck tires with 22.5-inch and 24.5-inch commercial rims — the R501P is deliberately not that machine. Compare across the full Rotary tire changer collection.
Ready to spec one for your bay? Call 800-674-9302 or reach out via our contact page.
Common questions about the Rotary R501P Heavy-Duty Fleet Tire Changer
Who is the Rotary r501p Heavy Duty Fleet Tire Changer designed for?
It is aimed at fleet shops running Class 3-6 medium-duty trucks and box vans. It also fits shops that match this profile: RV service centers that see 22.5" fitments and heavy sidewalls every week. If your shop lines up with either of those, this is the right tier in the buying decision.
How does it install in my bay?
The machine ships crated from the factory. Auto Lift Services delivers, uncrates, anchors, and cycles it in your bay, and our team handles startup with your crew so the first job through it is a clean one. Call 800-674-9302 for a delivered-and-installed quote.
When is the Rotary r501p Heavy Duty Fleet Tire Changer the wrong choice?
Skip it if your work is 100% passenger car and light-duty — the R145DR or R146RP is a better fit. In that case a different tier in the same line is usually the right call, and our team can route you to it on the phone. We would rather sell you the correct machine on the first try than take a return later.
What warranty and support come with it?
The machine ships with the manufacturer's factory warranty. Auto Lift Services stocks the common wear parts and dispatches service nationwide. If you are keeping this equipment in production for years, our parts pipeline is the reason to buy from a specialist rather than a general equipment reseller.
Ordering, freight, and lead time
We stock or drop-ship the Rotary R501P Heavy-Duty Fleet Tire Changer direct from the factory. Standard freight for shop-equipment machines is common-carrier LTL to a commercial address with a dock, with lift-gate freight available for shops without a dock — call for the lift-gate adder before ordering. Lead time on in-stock units is typically 3-10 business days to the dock; back-ordered configurations run longer and we quote a specific date before we take the order.
Payment options include ACH, wire, credit card, and 0% APR financing (12-month, 90-day defer) through our financing partner. Larger dealer POs and net-terms accounts are welcome — email [email protected] for the paperwork.
Ready to spec one for your bay? The Rotary R501P Heavy Duty Fleet Tire Changer is the workhorse we sell to fleet and RV shops that were burning up light-duty rim-clamp machines. Call 800-674-9302 to spec a Rotary R501P Heavy Duty Fleet Tire Changer with the electrical drop, air supply, and freight package your bay needs.
