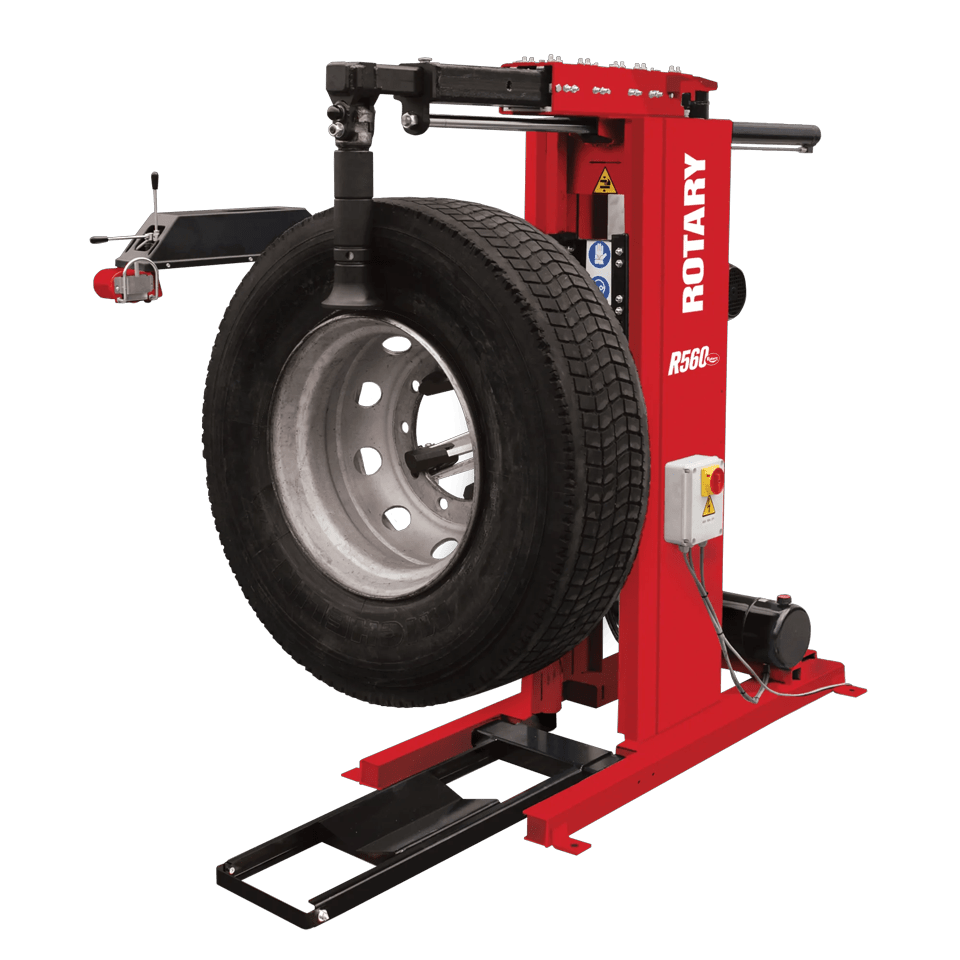

About the Rotary R560 Heavy-Duty Tire Changer

Who the Rotary R560 is built for

The Rotary R560 Heavy-Duty Tire Changer is a full commercial truck machine. It is engineered for medium-duty and heavy-duty tire work — 17.5-inch, 19.5-inch, 22.5-inch, and 24.5-inch commercial rims — and it is the tool you need if your shop actually pulls semi drives, tags, steers, and trailer positions on a routine basis. Truck dealership service departments, commercial tire dealers, over-the-road fleet shops, municipal and agricultural fleet operations, and heavy-truck tow/recovery outfits are the intended users. If you have been trying to make a passenger-class or even a heavy-fleet-pickup machine do commercial semi tires, the R560 is the honest answer to that problem.

Hydraulic power and floor-secure design

Commercial tires are not just bigger versions of passenger tires — the bead seat forces are dramatically higher, the tires are heavier to lift and rotate, and the initial-break loads can be substantial. The R560 responds with hydraulic power on the working assemblies rather than pneumatic-only actuation, and a floor-secure mounting arrangement that keeps the machine planted through those loads. That combination is what lets a single tech safely handle a 22.5-inch drive tire without an assistant and without a compromise on tire, rim, or operator safety.

TPMS considerations on commercial wheels

Commercial trucks increasingly carry TPMS and tire-inflation systems on both steer and drive positions, and the R560's chuck and mount/demount geometry is designed to keep those sensors and hardware out of the load path when the tech follows proper commercial-tire procedure. Rim damage is likewise a real concern on aluminum polished truck wheels, and the R560's protectors and controlled hydraulic motion are set up to keep the tool off the wheel face during the working cycle. As always, technique matters — the R560 is a professional machine expected to be run by trained commercial-tire techs.

Cycle time engineered for a truck day

A commercial tire shop measures productivity by trucks turned per day, not passenger cars per hour. The R560's cycle-time engineering is built around that reality: controlled hydraulic actuation, ergonomic layout that reduces walking around the machine, and a working envelope sized for the tires actually being handled. That is why the R560 shows up in real high-volume truck bays instead of on a spec sheet as an oversized car changer. Our heavy-duty tire changer article covers where a full commercial machine like the R560 belongs in a shop plan.

Install and shop requirements

The R560 needs a level, structural concrete slab that can carry both the static weight of the machine and the operating loads it puts through the floor. Expect a three-phase electrical drop matched to the hydraulic power unit and a dry shop-air supply for auxiliary functions. Plan a working footprint substantially larger than a passenger machine — commercial tires need staging room, an inflation cage nearby, and clear access for a tire dolly or roll-around. Floor anchoring is mandatory. Because commercial shops usually pair the R560 with a heavy-duty balancer, see our Rotary wheel balancers for the appropriate commercial partner unit.

Nationwide install and commercial service support

Auto Lift Services installs, commissions, and services the Rotary R560 nationwide. Commercial machines earn their money on uptime, and downtime on a truck bay is measured in trucks parked in the yard, so our field commissioning is thorough: rigging, leveling, anchoring, electric, hydraulic prime, air, and full cycle-test with your commercial tire techs. Wear parts, hydraulic components, and consumables are available long-term through our parts catalog and also on the broader tire changer service side at Auto Lift tire changer service.

How the R560 compares to its siblings

Choose the R560 when you are actually changing commercial truck tires — semi, medium-duty, and heavy fleet positions with 22.5-inch and 24.5-inch rims. Step down to the R501P if your job mix is really heavy pickup, RV, and commercial light-truck (19.5-inch and below) and you do not need full hydraulic commercial capacity. The passenger-class Rotary changers — R145DR, R146RP, R1200, R1250, R247D — are deliberately not in the R560's league; they are designed around a completely different wheel envelope. Compare across the full Rotary tire changer collection.

Ready to spec one for your bay? Call 800-674-9302 or reach out via our contact page.

Common questions about the Rotary R560 Heavy-Duty Tire Changer

Who is the Rotary r560 Heavy Duty Tire Changer designed for?

It is aimed at shops that see a routine mix of passenger, light-duty, and occasional medium-duty wheels. It also fits shops that match this profile: RV and light-truck centers that need heavier capacity than a passenger-only rim-clamp. If your shop lines up with either of those, this is the right tier in the buying decision.

How does it install in my bay?

The machine ships crated from the factory. Auto Lift Services delivers, uncrates, anchors, and cycles it in your bay, and our team handles startup with your crew so the first job through it is a clean one. Call 800-674-9302 for a delivered-and-installed quote.

When is the Rotary r560 Heavy Duty Tire Changer the wrong choice?

Skip it if you only see passenger cars — the R145DR is a better dollar-per-cycle machine. In that case a different tier in the same line is usually the right call, and our team can route you to it on the phone. We would rather sell you the correct machine on the first try than take a return later.

What warranty and support come with it?

The machine ships with the manufacturer's factory warranty. Auto Lift Services stocks the common wear parts and dispatches service nationwide. If you are keeping this equipment in production for years, our parts pipeline is the reason to buy from a specialist rather than a general equipment reseller.

Ordering, freight, and lead time

We stock or drop-ship the Rotary R560 Heavy-Duty Tire Changer direct from the factory. Standard freight for shop-equipment machines is common-carrier LTL to a commercial address with a dock, with lift-gate freight available for shops without a dock — call for the lift-gate adder before ordering. Lead time on in-stock units is typically 3-10 business days to the dock; back-ordered configurations run longer and we quote a specific date before we take the order.

Payment options include ACH, wire, credit card, and 0% APR financing (12-month, 90-day defer) through our financing partner. Larger dealer POs and net-terms accounts are welcome — email sales@autoliftserv.com for the paperwork.
