The Rotary T130350 safety latch is the direct replacement for the Rotary lift it came off of. Cross-referenced as ALS-9784-31, it is the genuine Rotary part — same part number, same fit, and same working specification as the one already on your lift. Ordering the Rotary safety latch from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.

Specifications

• Part number: ALS-9784-31
• Brand: Rotary
• Type: Genuine OEM safety latch
• Fits: SL210, SL212
• Lift type: inground lift

The locks are the lift's mechanical backup — the part that actually holds the vehicle up once it's raised. A spring-loaded pawl drops into a toothed ladder at each column, and the lift rests on steel, not on hydraulic pressure. Hydraulics raise the lift; the locks are what let you work under it. Every click you hear on the way up is a pawl catching a tooth, ready to catch the whole load if pressure is ever lost.

Rust is what usually kills a lock before wear does. The pivot seizes, the return spring corrodes and weakens, and the pawl stops dropping crisply into the ladder. On a lift that lives in a damp shop or an unheated garage, the locks are often the first safety part to go — not from cycles, but from a stiff, gummed-up mechanism that no longer moves the way it has to.

What lifts this safety latch fits

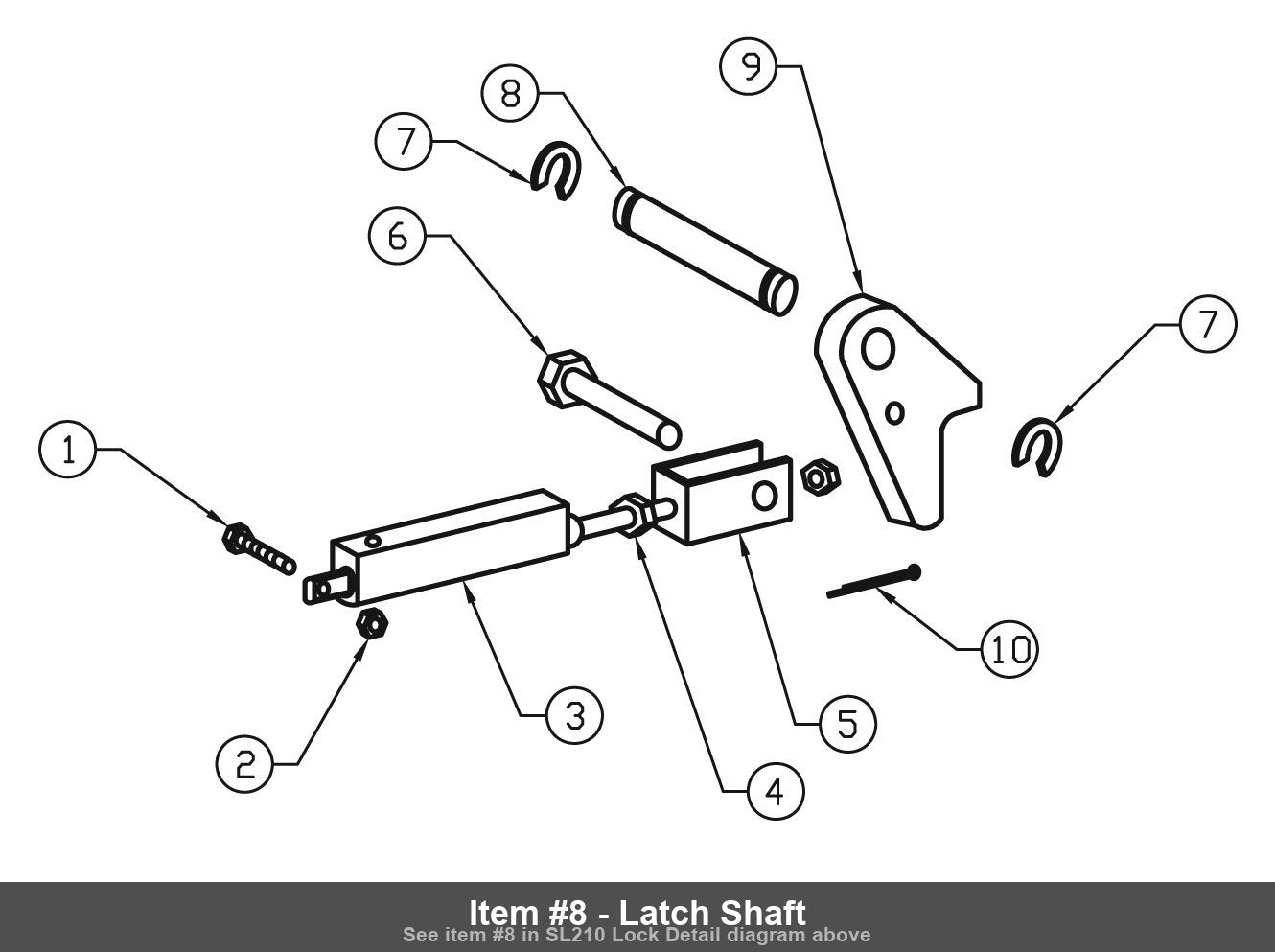

This safety latch fits the lift models below. Click a model to open its visual parts breakdown — the exploded drawing with every part numbered, so you can confirm this is the right part for your exact lift before you order.

• SL210 — see the exploded parts breakdown for this lift
• SL212 — see the exploded parts breakdown for this lift

Related parts for this lift

The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.

• Latch Clevis Pin, Plated - Rotary T140135
• Locking Latch - Rotary T130348
• Latch Plate for SL212 - Rotary - T130342BK T130342

Replacing your safety latch

A sticky or worn pawl replacement means freeing or renewing the pawl, its pivot, and its return spring so it drops into the ladder without hesitation. Clean the mechanism, install the new parts, and test that the pawl snaps home and retracts fully on release. Because a lazy pawl is the difference between a lift that catches and one that doesn't, walk through the complete guide before you trust it. Full step-by-step: how to replace a lift lock ladder.

Find the right part for your lift

Not certain this is the exact part your lift needs? Start with your lift's model and serial off the data plate, then open our Rotary parts lookup to see the visual parts breakdown for your model — the exploded drawing with every part numbered and priced. If your plate is missing or unreadable, our guide to finding your model number walks through where to find it, or send us a photo and we will identify the lift for you.

Signs the locking system needs attention

Work each pawl by hand with the lift safely down or supported. It should pivot freely and snap back under spring pressure with no hesitation. A pawl that moves sluggishly, hangs up, or has to be helped back is gummed with grease and grit or has a weak spring — clean and free it, or replace it. A sticky pawl is one that won't be there when a lift loses pressure.

Parts commonly replaced at the same time

Order lock parts as a group. Even, synchronized engagement depends on matched hardware on both columns, so the latch, pawl, spring, and release cable are best done together. It is cheaper in one pass, and we keep the right versions for your production run — one call gets the whole kit.

Safety notes

Do not run a lift whose locks do not click crisply and together. Worn pawls and stretched release cables let a carriage settle onto a tooth that is not fully seated — which is exactly how a lift fails under load. Adjust and replace lock parts as a set, and test engagement on both columns before the lift carries weight.

Before you order

A quick check before ordering: model, serial, and whether one or both columns need work. Lock designs vary by year, and matched hardware on both sides is what keeps engagement even. If your release cable is due too, add it now rather than reopening the column later.

Confirm this is the right part before you order

Lift manufacturers revise parts mid-production without changing the model name, so the same lift bought two years apart can take two different revisions of the same component. Before you order, find the model plate on the lift — on most 2-post lifts it rides on one of the columns at eye level, on 4-post lifts it is usually on a column or the power-unit side runway — and note the full model number and serial. The serial dates the lift to a production run, and that is what decides which revision fits.

If the plate is painted over or missing, take a photo of the part you are replacing next to a tape measure and send it to us. Between the dimensions, the mounting pattern, and what lift it came off of, we can almost always identify the exact part before you spend money on the wrong one.

Why buy your Rotary safety latch from Auto Lift Services

We install, inspect, and repair Rotary lifts every week — the ALS-9784-31 is a part we handle in the shop, not a random SKU we drop-ship. The phone answers if you have a question mid-install — call 800-674-9302 — and every part ships genuine, no aftermarket substitution unless you ask for it.
