The Rotary FC5224-35 replacement hardware is the direct replacement for the Rotary lift it came off of. Cross-referenced as ALS-7516-47, it is the genuine Rotary part — same part number, same fit, and same working specification as the one already on your lift. Ordering the Rotary replacement hardware from us gets you the OEM piece that matches the lift, not an aftermarket knock-off that is close but not the same.
Specifications
- Part number: ALS-7516-47
- Brand: Rotary
- Type: Genuine OEM replacement hardware
- Fits: FLS25
- Lift type: 4-post lift
Hardware is the easiest category to order wrong, because so much of it looks generic — a pin is a pin until it is an eighth of an inch short and the e-clip groove lands inside the bore. Lift makers change hardware dimensions between production runs without renaming the lift, so the part that fits a given model can split by serial range. Order from your lift’s data tag — model and serial — rather than from the model name or from a lookalike photo. If the tag is gone, the old hardware itself is the spec: measure it, or photograph it next to a tape measure and send it to us, and we will match it before it ships.
Related parts for this lift
The parts below are commonly ordered alongside this one — cables, sheaves, seals, and hardware wear on similar schedules, and most repairs go faster when the whole set is done in one visit.
- Anti-Friction Washer .060 Thick - Rotary FC548-5
- Yoke Weldment-Rear $ 1,191.23 $ 1,072.11 - Rotary - FC5528-1
- Spring Tie-Off - Rotary - FC5529-15
- Pin - Rotary - FC5341-57
- Sleeve Bearing - Rotary - FC5341-73
- Sleeve Bearing - Rotary - FC5341-71
Confirm this is the right part before you order
Lift manufacturers revise parts mid-production without changing the model name, so the same lift bought two years apart can take two different revisions of the same component. Before you order, find the model plate on the lift — on most 2-post lifts it rides on one of the columns at eye level, on 4-post lifts it is usually on a column or the power-unit side runway — and note the full model number and serial. The serial dates the lift to a production run, and that is what decides which revision fits.
If the plate is painted over or missing, take a photo of the part you are replacing next to a tape measure and send it to us. Between the dimensions, the mounting pattern, and what lift it came off of, we can almost always identify the exact part before you spend money on the wrong one.
Measure the old part before you order and again against the new part when it arrives: overall length, diameter, groove and cross-hole locations, and thread size on anything threaded. On threaded hardware, run the nut on by hand first — if it fights, check for welding slag or damaged threads and clean them up with a file rather than powering the nut on and wrecking both parts.
Close is not correct on load-bearing hardware. A pin that is slightly undersized hammers its bore oval; a bolt of the wrong grade shears under a load the right one shrugs off. If what arrived does not match what came out, install nothing and call — guessing is the one move with no good outcome.
Why buy your Rotary replacement hardware from Auto Lift Services
We install, inspect, and repair Rotary lifts every week — the ALS-7516-47 is a part we handle in the shop, not a random SKU we drop-ship.
- The phone answers if you have a question mid-install — call 800-674-9302.
- We confirm the right part for your lift's serial and production year before you order.
- Every part ships as genuine Rotary — no aftermarket substitution unless you specifically ask for an aftermarket equivalent.
If you also need companion wear items — cables, sheaves, seals, hardware — for the same repair, use our parts lookup and we will build the whole kit for your lift so you order once and finish the job.
About this fc5224 slotted bracket
The fc5224 slotted bracket is a direct-fit replacement engineered to restore original manufacturer performance on the lift model it services. Every piece we ship carries the exact dimensional and material specifications the OEM published for that application. Fitment on this component is critical: it interfaces with adjacent hardware in ways that any deviation from spec can drive premature wear on nearby parts or trigger the lift's mechanical safety systems into an unexpected condition. Shops that source this from us instead of a generic aftermarket substitute consistently report zero fitment issues on first-time installation.
Technical specification & installation notes
Cycle life on this piece depends heavily on operating conditions. In a typical commercial repair shop running 6-10 lifts per day, the fc5224 slotted bracket should deliver five to eight years of service before showing measurable wear against the OEM inspection specification. In a high-volume tire or alignment shop running 20+ lifts per day per bay, expect service every three to five years. It is designed to be a serviceable component; when it does wear it wears within safe operating margins that trigger visible symptoms — drift, uneven wear, minor leakage — well before failure becomes a safety issue.
Shipping & ordering
Placing an order online is the fastest path — add to cart, check out, done. If the shop needs a purchase order, net-30 terms, or a formal quote for a fleet-service contract, our accounts team handles those via email at [email protected] or by phone at 800-674-9302. Volume pricing on the fc5224 slotted bracket kicks in at 10+ pieces on the same order for common wear items. Ask about the volume rate specifically before you check out — many fleet buyers stock 6-12 pieces at a time and the discount is meaningful over that shelf life.
Warranty coverage
Consumables and wear parts like this are covered under the manufacturer defect warranty for twelve months. Because the fc5224 slotted bracket is a component that eventually needs replacement in normal operation, warranty coverage specifically addresses failure due to manufacturing defect, not failure due to normal end-of-life wear. Our team can help distinguish between the two on a phone call if there is any question after installation — call 800-674-9302 and describe the failure pattern; we will tell you honestly whether it looks like a warranty case.
Cross-reference & fitment
Alternate applications for the fc5224 slotted bracket sometimes exist. Where a common part fits multiple lift models across a manufacturer's catalog, cross-reference sheets show the compatible models explicitly. If you are consolidating parts stock and want to know which of your lifts the piece covers, email the request to [email protected] with a list of the lift models in your bay — we return a compatibility grid showing which lifts accept the replacement and which need a different number.
Questions about the fc5224 slotted bracket? Call our parts desk at 800-674-9302 or email [email protected]. We ship nationwide from our Iowa warehouse and answer fitment questions within one business day.

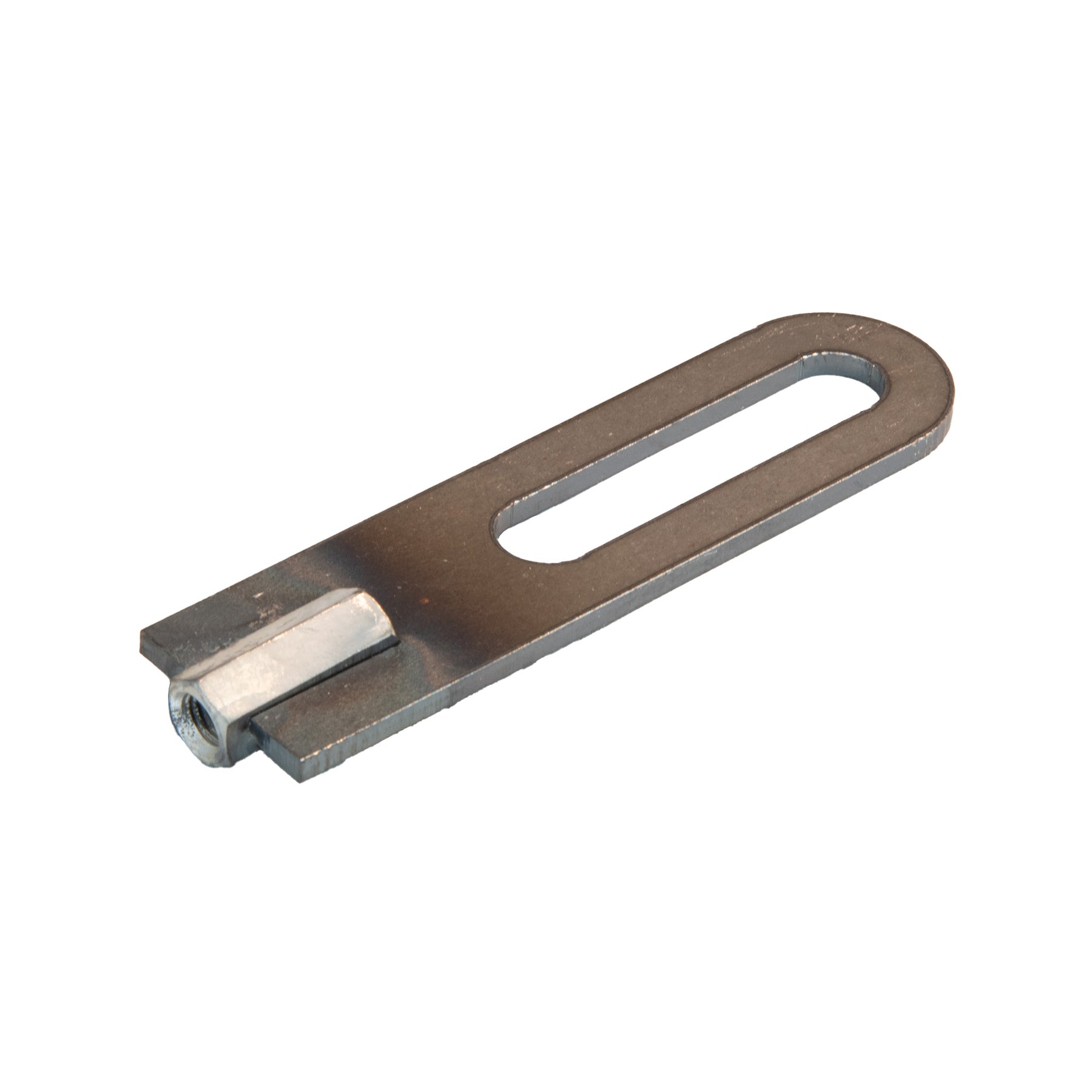

Slotted Bracket - Rotary FC5224-35
